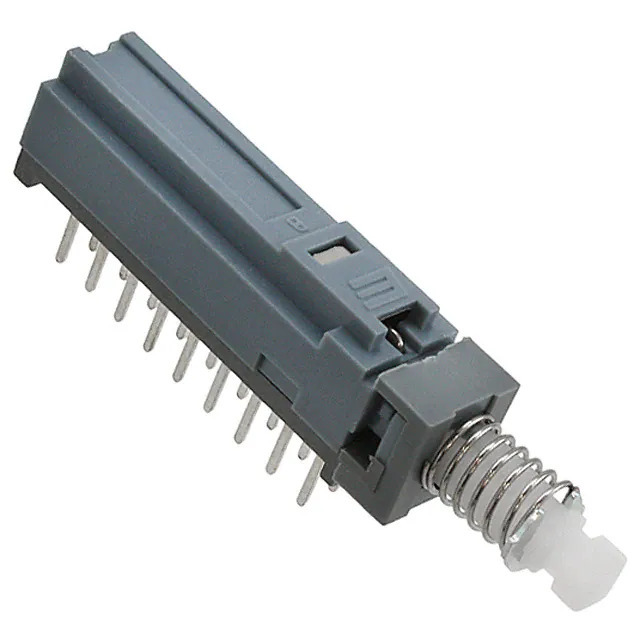

PBH6UEENAGX E-Switch
Same model may have multiple batches, images only for reference.

PBH6UEENAGX

Part No PBH6UEENAGX
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSH 6PDT 0.1A 30V
Datasheet
PBH6UEENAGX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr E-Switch
Series PBH
Package Bulk
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit 6PDT
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap White
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features -
Panel Cutout Dimensions -
Temperature Range - Operating -20°C ~ 70°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number PBH6
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1376205-PBH6UEENAGX
Ultra Librarian 3D Model Ultra Librarian PBH6UEENAGX CAD Model

Description

The PBH6UEENAGX is a pushbutton switch manufactured by E-Switch.

  • Mounting Type: Through-hole, right angle
  • Actuator Type: Plunger for cap
  • Circuit: 6PDT
  • Switch Function: on-on
  • Current Rating (DC): 100mA
  • Voltage Rating (DC): 30VDC
  • Actuator Color: White
  • Termination Style: PC pin
  • Mechanical Life: 30,000 cycles
  • Electrical Life: 10,000 cycles
