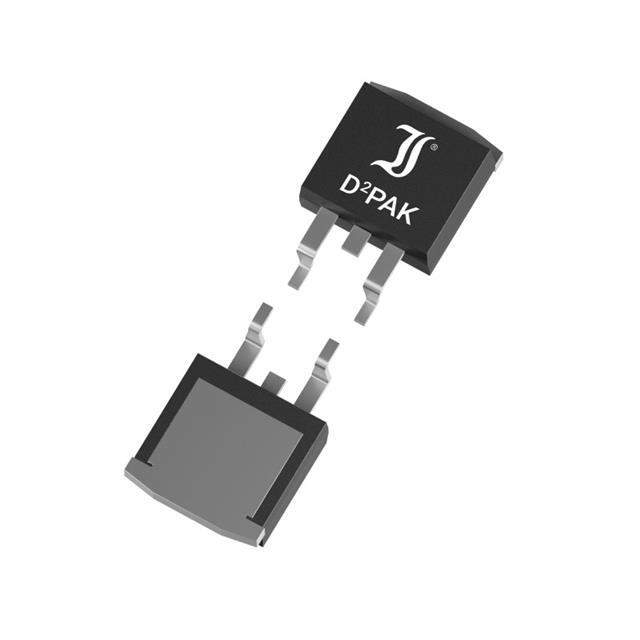

SK30100CD2 Real Image
Same model may have multiple batches, images only for reference.

SK30100CD2

Part No SK30100CD2
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Arrays
Description SchottkyD, 100V, 30A / Diode Array 1 Pair Common Cathode Schottky 100 V 15A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Diotec Semiconductor
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 100 V
Operating Temperature - Junction -50°C ~ 150°C
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D2PAK)
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-SK30100CD2
Standard Package 50
Win Source Part Number 1218999-SK30100CD2
Ultra Librarian 3D Model Ultra Librarian SK30100CD2 CAD Model

Description

The SK30100CD2 is a fast recovery Schottky diode array from Diotec Semiconductor.

  • Voltage - DC Reverse (Vr) (Max): 100 V
  • Voltage - Forward (Vf) (Max) @ If: 850 mV @ 15 A
  • Current - Reverse Leakage @ Vr: 500 μA @ 100 V
  • Current - Average Rectified (Io) (per diode): 15A
  • Operating Temperature - Junction: -50°C ~ 150°C
  • RoHS Compliance: Non-compliant.
