Product Overview: PI7C8150BMAE by Diodes Incorporated

The PI7C8150BMAE is a high-performance PCI-to-PCI bridge chip designed by Diodes Incorporated. This integrated circuit is engineered to provide a smooth and reliable interface between two PCI buses operating at a bus frequency of up to 66MHz. The device conforms to PCI Local Bus Specification Revision 2.2 and is ideal for expanding the number of slots in a PCI system or for bridging between two PCI buses.

The PI7C8150BMAE features a 32-bit PCI interface and offers support for both 5V and 3.3V signaling environments, making it versatile for use in various system designs. The dual PCI bus architecture ensures efficient communication and high data throughput between the primary and secondary buses, with a primary (system) bus capable of supporting up to five loads and a secondary (peripheral) bus supporting up to four loads.

This PCI-to-PCI bridge chip is equipped with a number of advanced features to enhance system performance. These include deep FIFOs to optimize data transfers, support for delayed transactions, and efficient handling of multiple outstanding transactions. The bridge also provides full support for PCI power management, which is essential for energy-saving applications.

The PI7C8150BMAE is designed with reliability in mind, incorporating features such as built-in arbitration, parity error detection, and handling to ensure data integrity across the PCI buses. The device also supports hot-swap and hot-plug capabilities, allowing for the addition or removal of PCI devices without the need to power down the system.

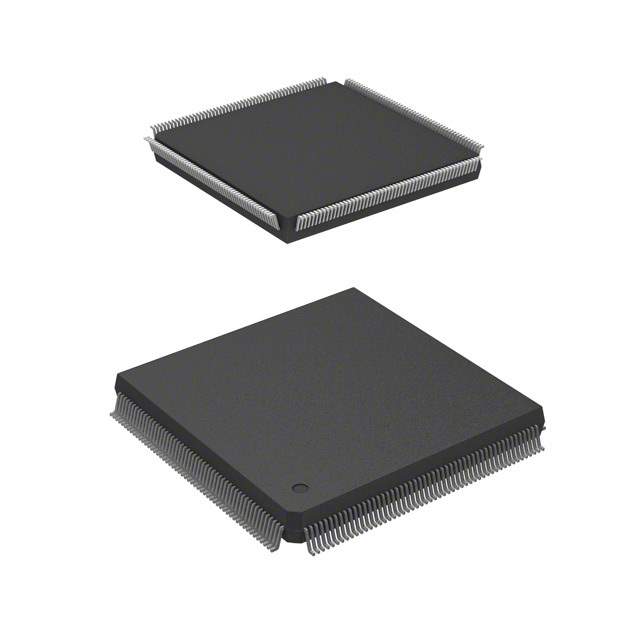

Packaged in a 208-pin PQFP (Plastic Quad Flat Pack), the PI7C8150BMAE is suitable for a wide range of applications, including embedded systems, communication infrastructure, and industrial computing. Its robust design and comprehensive feature set make it an excellent choice for designers looking to enhance their PCI-based systems.

For further details and specifications, the datasheet for the PI7C8150BMAE can be accessed directly from the Diodes Incorporated website, providing in-depth information on the product's electrical characteristics, pin configurations, and application notes.
