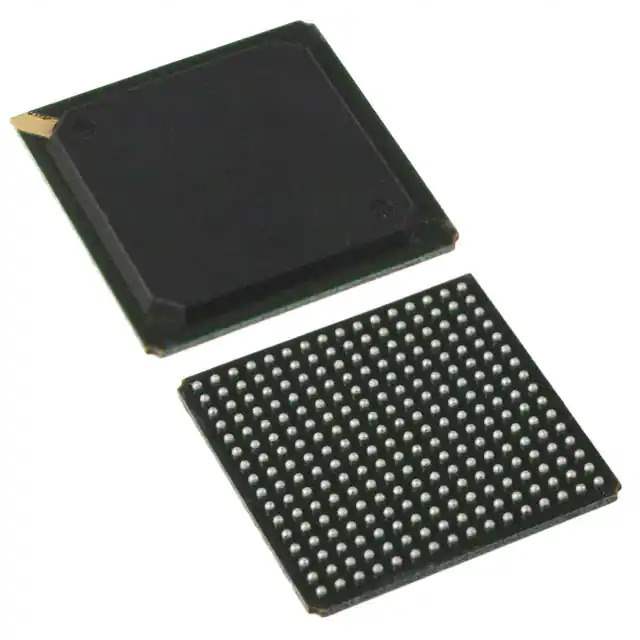

The PI7C8150AND-33 is a high-performance, versatile PCI-to-PCI bridge chip designed by Diodes Incorporated. This advanced integrated circuit is engineered to provide a reliable and efficient means of expanding the PCI bus from a single master to multiple slave configurations. The device operates at a clock speed of 33MHz, which is standard for PCI 2.1 and 2.2 compliant systems.

Key Features

• PCI Bus Compatibility: Fully compliant with PCI Local Bus Specification Revision 2.1 and 2.2, ensuring seamless integration with existing and future PCI systems.
• Dual PCI Bus: Features two independent PCI bus interfaces, enabling communication between a primary bus (system side) and a secondary bus (expansion side).
• High-Speed Operation: Operates at a 33MHz clock speed, providing fast data transfer rates suitable for a wide range of applications.
• Voltage Operation: Supports 3.3V operation, which is compatible with modern low-voltage systems, contributing to energy efficiency.
• Enhanced Data Integrity: Incorporates parity error detection on both the primary and secondary buses, promoting reliable data transfer and system stability.

Applications

The PI7C8150AND-33 is ideal for a variety of applications that require PCI bus expansion. These include, but are not limited to:

• Embedded systems
• Networking equipment
• Data communication devices
• Servers and workstations
• Industrial control systems

Technical Specifications

With its robust feature set and compliance with existing PCI standards, the PI7C8150AND-33 from Diodes Incorporated is a reliable choice for system designers looking to expand their PCI capabilities while maintaining system integrity and performance.
