Product Overview: PI5A4157ZUEX from Diodes Incorporated

The PI5A4157ZUEX is a high-performance, single-pole, double-throw (SPDT) analog switch from Diodes Incorporated, designed to deliver a combination of fast switching speeds, low on-resistance, and low crosstalk. This makes it an ideal choice for a variety of applications including signal routing, data acquisition systems, and communication devices.

This versatile switch operates over a broad voltage range, from 1.65V to 5.5V, allowing it to accommodate a variety of logic levels and making it suitable for battery-operated devices. The PI5A4157ZUEX also boasts a low quiescent current, which helps in extending battery life in portable applications.

Key Features:

• Low On-Resistance: Typically just 0.5Ω at 5V, which minimizes signal distortion and voltage drop across the switch, ensuring high signal integrity.
• Fast Switching Speed: Turn-on and turn-off times are typically in the order of nanoseconds, which is beneficial for high-speed applications.
• Wide Operating Voltage Range: Compatible with 1.65V to 5.5V logic levels, offering versatility in various system designs.
• Low Crosstalk: Ensures minimal interference between signals, which is critical for maintaining signal fidelity in mixed-signal environments.
• Low Power Consumption: The PI5A4157ZUEX has a low quiescent current, which is crucial for power-sensitive applications.
• Break-Before-Make Switching: This feature prevents signal shorting when switching from one channel to another.

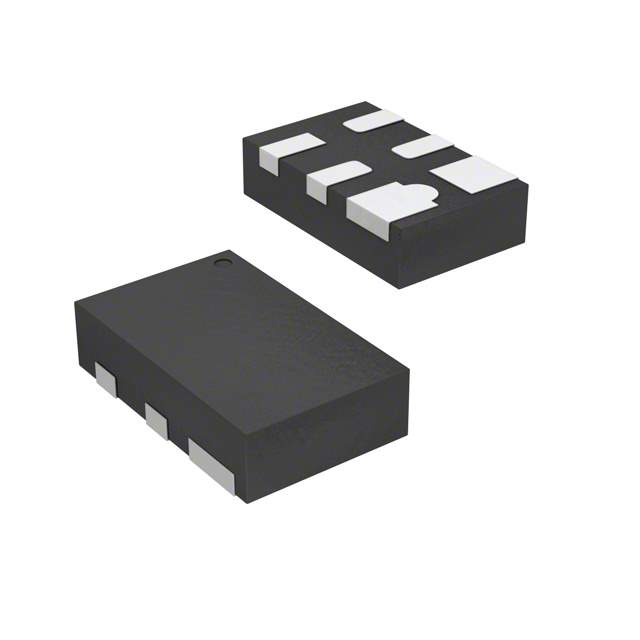

The device is available in a compact U-DFN2020-6 (Type B) package, which is ideal for space-constrained applications. It also features ESD protection, which safeguards the device against electrostatic discharges during handling and operation, enhancing its reliability and lifespan.

Applications for the PI5A4157ZUEX are diverse, ranging from audio and video signal routing to precision analog switching in test equipment. Its robust design and specifications make it a suitable choice for designers looking for a reliable and efficient analog switch solution.

With its performance characteristics and Diodes Incorporated's reputation for quality, the PI5A4157ZUEX is a strong contender for any application requiring a high-performance SPDT analog switch.
