STG4210QTR Dual SPDT Switch by STMicroelectronics

The STG4210QTR from STMicroelectronics is a high-performance, dual single-pole double-throw (SPDT) switch IC designed for signal switching applications. This advanced switch is suitable for a wide range of uses, from personal electronics to industrial systems, offering a combination of low on-resistance and low crosstalk that ensures signal integrity in the most demanding scenarios.

Key Features

• Wide Operating Voltage Range: The device operates over a broad voltage range from 1.65V to 4.3V, making it versatile for different circuit configurations and compatible with a variety of logic levels.
• Low On-Resistance: The STG4210QTR boasts an exceptionally low on-resistance (Typically 5Ω), which minimizes power loss and voltage drop across the switch, ensuring efficient operation.
• High-Speed Switching: It is capable of high-speed switching, which is critical for applications that require rapid signal routing and minimal latency.
• ESD Protection: The switch is equipped with robust ESD (Electrostatic Discharge) protection, safeguarding it against the damaging effects of static electricity.
• Break-Before-Make Feature: This functionality ensures that there is no momentary short circuit when transitioning from one path to another, which is essential for preventing signal disruption.

Applications

The STG4210QTR is suitable for a variety of applications where signal routing is required, including but not limited to:

• Audio and Video Signal Switching
• Data Acquisition Systems
• Communication Devices
• Portable and Battery-Powered Devices

Quality and Reliability

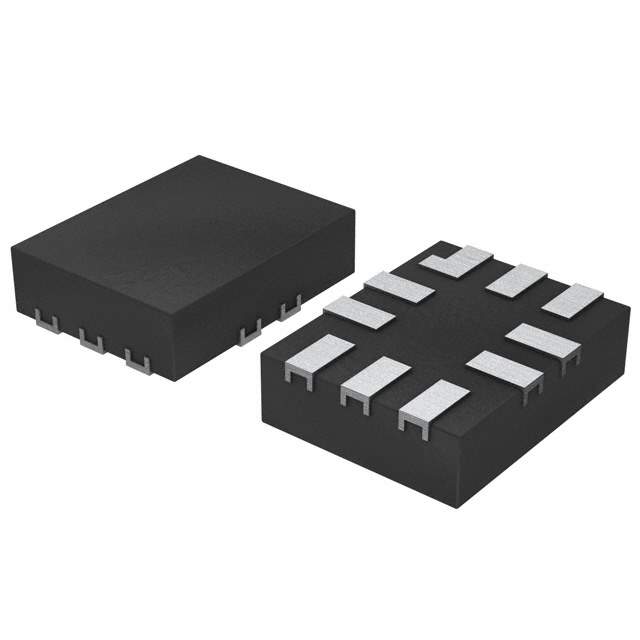

As with all STMicroelectronics products, the STG4210QTR is manufactured to meet the highest quality and reliability standards. The device is available in a compact QFN-10 package, which is ideal for space-constrained applications. Whether integrating into a sophisticated audio system or a simple signal routing circuit, the STG4210QTR provides a reliable and efficient solution for your switching needs.
