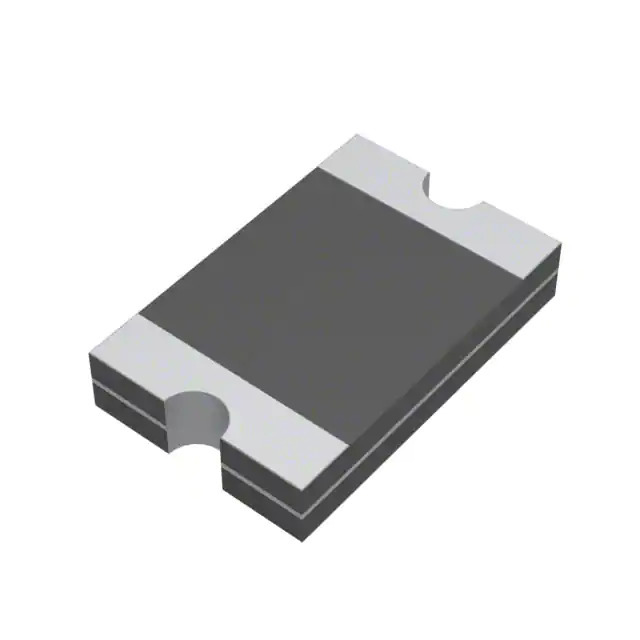

Part No SMD0805B110TF
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description POLYMERIC PTC RESETTABLE FUSE SU / Polymeric PTC Resettable Fuse 6V 1.1 A Ih Surface Mount 0805 (2012 Metric), Concave
Datasheet
SMD0805B110TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series SMD0805
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 6V
Current - Hold (Ih) (Max) 1.1 A
Current - Trip (It) 2 A
Current - Max 100 A
Time to Trip 300 ms
Resistance - Initial (Ri) (Min) 35 mOhms
Resistance - Post Trip (R1) (Max) 210 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), Concave
Size / Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Height - Seated (Max) -
Thickness (Max) 0.059" (1.50mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361601-SMD0805B110TF
Ultra Librarian 3D Model Ultra Librarian SMD0805B110TF CAD Model

Description

The 1361601-SMD0805B110TF is a polymeric PTC resettable fuse manufactured by YAGEO.

  • Maximum Operating Temperature: -40°C to 85°C
  • Maximum Current Rating: 100 A
  • Maximum Voltage: 6V
  • Time to Trip: 300 ms
  • Resistance: 35 mOhms
  • Approvals: cUL, TUV, and UL
  • Package: 0805
  • Dimensions: 0.083" L x 0.053" W (2.10mm x 1.35mm)
  • Maximum Thickness: 0.059" (1.50mm)
  • Application: Circuit Protection
