The AH1822-FU4G-7, from Diodes Incorporated, is a high-performance, micropower Omnipolar Hall Effect switch IC designed for a broad range of applications. This compact and efficient sensor is a perfect solution for battery-powered consumer products, home appliances, industrial equipment, and more. With its small footprint and low power consumption, the AH1822-FU4G-7 is engineered to provide reliable switching operations in a variety of environmental conditions.

Key Features

• Omnipolar Operation: The device can detect both North and South poles, providing greater flexibility in magnet selection and simplifying installation.
• Low Power Consumption: With a supply current of only 24μA, it is ideal for power-sensitive applications, extending the battery life of portable devices.
• High Sensitivity: The AH1822-FU4G-7 offers high magnetic sensitivity, ensuring accurate detection even with small or weak magnets.
• Chopper-Stabilized Design: This feature provides stable operation over a wide temperature range and minimizes the influence of thermal and mechanical stresses.
• Output Type: The device has a push-pull output, which eliminates the need for external pull-up resistors and simplifies circuit design.
• Supply Voltage Range: It operates over a broad voltage range from 2.5V to 5.5V, accommodating various system power supplies.
• Robust Protection Features: The IC includes reverse blocking diode, ESD protection, and output short-circuit protection, enhancing system reliability.

Applications

• Smartphone and Tablet Covers
• Portable Medical Devices
• Industrial Sensors and Safety Switches
• Consumer Electronics
• Home Appliances

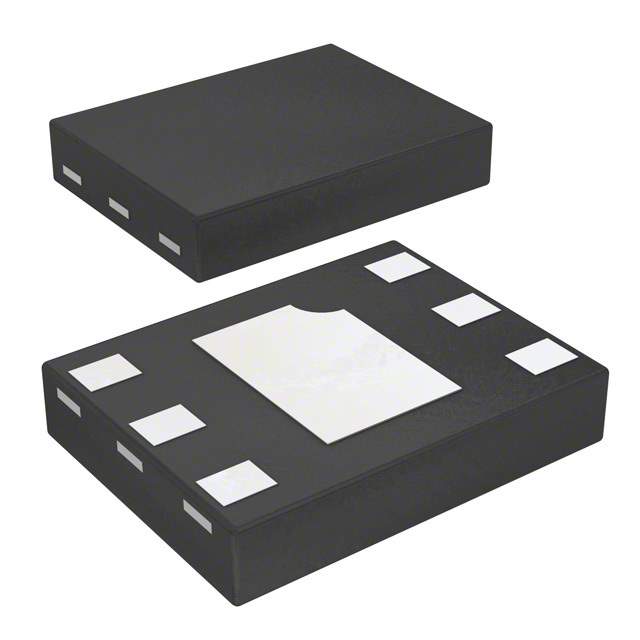

The AH1822-FU4G-7 is available in a compact SOT553 package, making it easy to integrate into space-constrained designs. Its operational stability, coupled with Diodes Incorporated's commitment to quality, ensures that this Hall Effect switch IC provides a reliable, cost-effective solution for designers seeking to enhance the performance and efficiency of their products.
