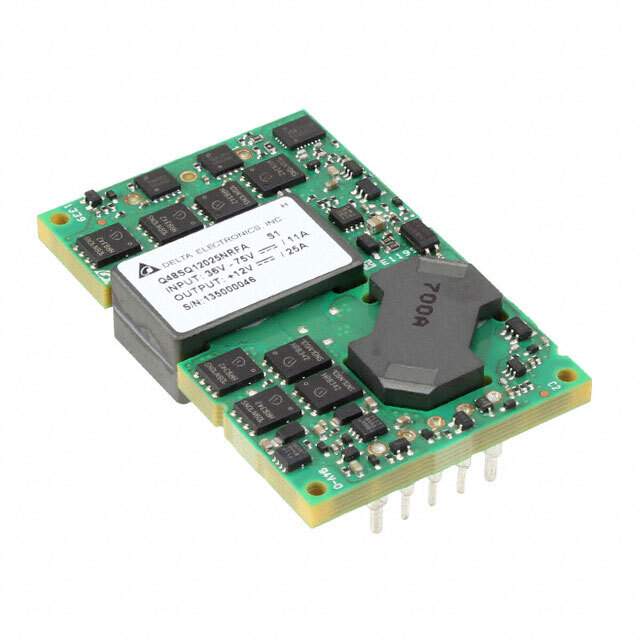

Q48SQ12025NRFA Real Image
Same model may have multiple batches, images only for reference.

Q48SQ12025NRFA

Part No Q48SQ12025NRFA
Manufacturer Delta Electronics
Catalog Board Mount Modules
Description DC DC Converter 12V 300W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Efficiency 95.5 %
Features OCP, OTP, OVP, UVLO
Height 11.176 mm
Isolation Voltage 1.5 kV
Length 57.912 mm
Max Input Voltage 75 V
Max Input Voltage (DC) 75 V
Maximum Operating Temperature 85 °C
Max Output Current 25 A
Max Power Dissipation 300 W
Min Input Voltage 36 V
Min Input Voltage (DC) 36 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Outputs 1
RoHS Compliant
Voltage - Output 1 12 V
Width 36.83 mm
Win Source Part Number 985039-Q48SQ12025NRFA
Categories Board Mount Modules
Manufacturer Delta Electronics
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian Q48SQ12025NRFA CAD Model

Description

The Delta Electronics 985039-Q48SQ12025NRFA is a through-hole mount board mount module with a power rating of 300W.

  • Features: OCP, OTP, OVP, and UVLO
  • Output: Single
  • Maximum Output Current: 25A
  • Output Voltage: 12V
  • Input Voltage Range: Between 36V and 75V
  • Efficiency: 95.5 percent
  • RoHS: Compliant
  • Package Dimensions: 57.912mm x 36.83mm x 11.176mm
  • Operating Temperature Range: Between -40°C and 85°C
  • REACH: Unaffected
  • ECCN: EAR99
