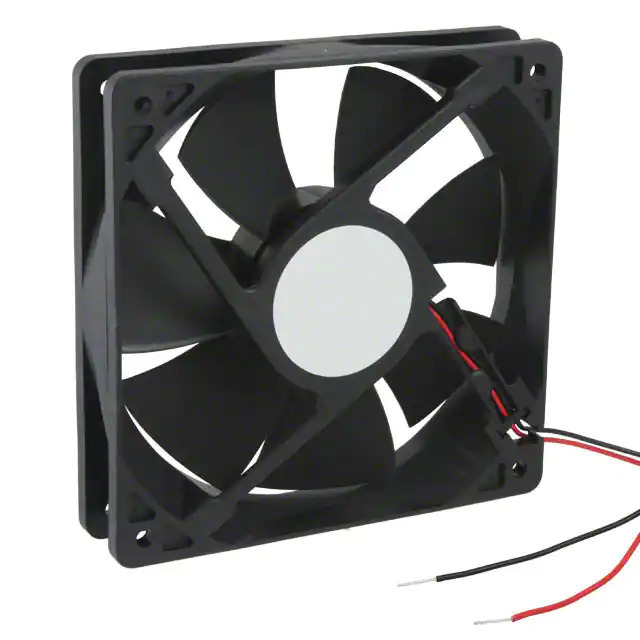

AFB1224H Delta Electronics
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 120mm L x 120mm H
Width 25.40mm
Air Flow 82.7 CFM (2.32m³/min)
Static Pressure 0.246 in H2O (61.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 38.5dB(A)
Power (Watts) 3.36 W
RPM 2500 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.437 lb (198.00 g)
Current Rating (Amps) 0.140A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB1224
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368415-AFB1224H
Ultra Librarian 3D Model Ultra Librarian AFB1224H CAD Model

Description

The AFB1224H is a DC brushless fan manufactured by Delta Electronics.

  • Series: AFB
  • Size: 120mm x 120mm
  • Rated Voltage: 24VDC
  • Current Rating: 0.140A
  • Power Consumption: 3.36W
  • Bearing Type: Ball Bearing
  • Rated Lifetime: 70,000 hours @ 40°C
  • Protection: Locked Rotor Protection
  • Air Flow: 82.7 CFM (2.32m³/min)
  • Static Pressure: 0.246 in H2O (61.3 Pa)
  • Noise Level: 38.5dB(A)
  • Maximum Speed: 2500 RPM
