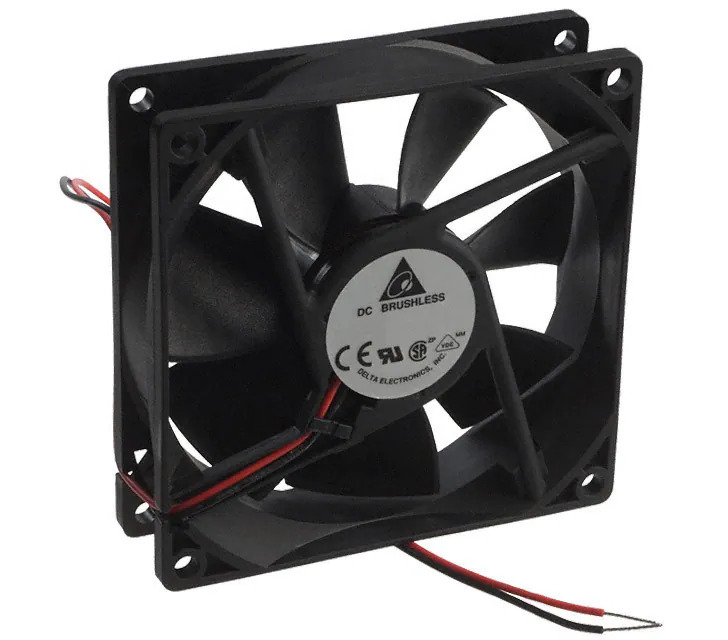

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Tray
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 92mm L x 92mm H
Width 25.40mm
Air Flow 67.8 CFM (1.90m³/min)
Static Pressure 0.302 in H2O (75.2 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 45.0dB(A)
Power (Watts) 4.8 W
RPM 3800 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.218 lb (98.88 g)
Current Rating (Amps) 0.400A
Voltage Range 7 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0912
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368411-AFB0912VH
Ultra Librarian 3D Model Ultra Librarian AFB0912VH CAD Model

Description

The AFB0912VH is a DC brushless fan from Delta Electronics.

  • Series: AFB series
  • Voltage Rating: 12VDC
  • Current Rating: 0.400A
  • Power Consumption: 4.8W
  • Features: locked rotor protection
  • Size: 92mm square
  • Height: 92mm
  • Material: plastic
  • Bearing Type: ball bearing
  • Speed: 3800 RPM
  • Air Flow: 67.8 CFM
  • Approvals: CE, CSA, UL, and VDE
  • Noise Level: 45.0dB(A)
  • Lifetime: 70000 hours @ 40°C
