5084616-2
Same model may have multiple batches, images only for reference.

5084616-2

Part No 5084616-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors

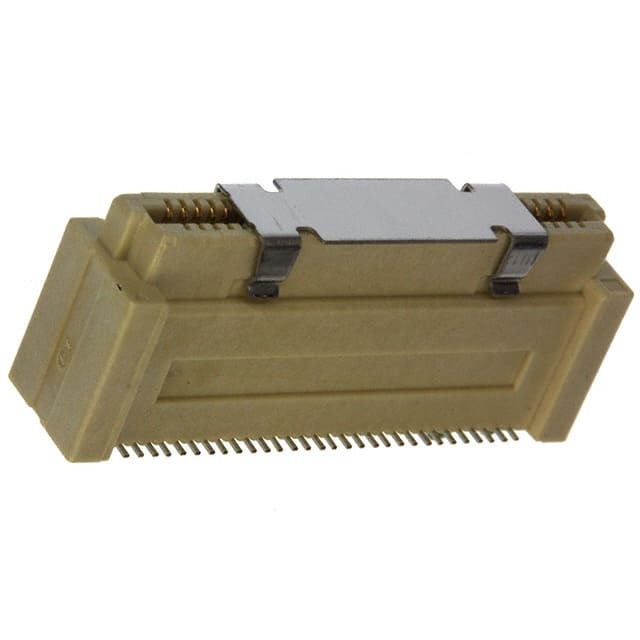

Description CONN RCPT 60POS SMD GOLD / 60 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series Free Height (FH)
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 60
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 13mm, 14mm, 15mm, 16mm
Height Above Board 0.463" (11.75mm)
Base Product Number 5084616
Standard Package 200 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856341-5084616-2
Ultra Librarian 3D Model Ultra Librarian 5084616-2 CAD Model

Description

The Free Height (FH) series edge type mezzanine connector is a high-quality component for board to board applications.

  • Positions: 60
  • Pitch: 0.031" (0.80mm)
  • Feature: board guide
  • Connector Type: receptacle with outer shroud contacts
  • Plating: gold plated
  • Package: 200 pcs in tape & reel or cut tape
  • Mounting: surface mount
  • Height Above Board: 0.463" (11.75mm)
  • Stacking Heights: 13mm to 16mm
