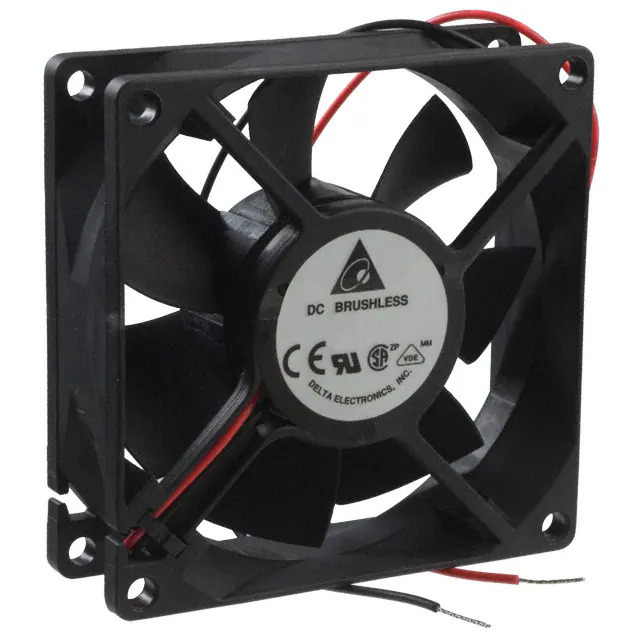

AFB0812HH Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0812HH

Part No AFB0812HH
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 80X25.4MM 12VDC WIRE
Datasheet
AFB0812HH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Tray
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.40mm
Air Flow 37.4 CFM (1.05m³/min)
Static Pressure 0.181 in H2O (45.1 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 34.0dB(A)
Power (Watts) 2.4 W
RPM 3250 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.176 lb (80.00 g)
Current Rating (Amps) 0.200A
Voltage Range 7 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0812
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368400-AFB0812HH
Ultra Librarian 3D Model Ultra Librarian AFB0812HH CAD Model

Description

The AFB0812HH is a DC brushless fan designed for efficient thermal management in electronic devices from Delta Electronics.

  • Voltage: 12VDC
  • Current: 0.200A
  • Shape: Square
  • Dimensions: 80mm length and 80mm height
  • Bearing Type: Ball
  • Noise Level: 34.0dB(A)
  • Max Speed: 3250 RPM
  • Air Flow Rate: 37.4 CFM
  • Protection: Locked Rotor Protection
  • Approvals: CE, CSA, UL, and VDE
  • Construction: Plastic Frame and Blade
  • Weight: 0.176 lb (80.00 g)
  • Product Status: Active
  • Series: AFB
