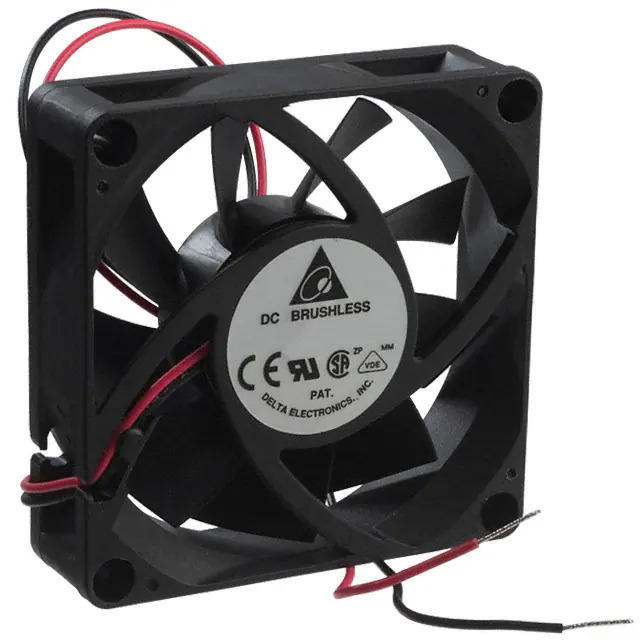

AFB0712HHB Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0712HHB

Part No AFB0712HHB
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 70X15MM 12VDC WIRE
Datasheet
AFB0712HHB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Box
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 70mm L x 70mm H
Width 15.00mm
Air Flow 37.5 CFM (1.05m³/min)
Static Pressure 0.210 in H2O (52.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 38.5dB(A)
Power (Watts) 3.12 W
RPM 4300 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.104 lb (47.17 g)
Current Rating (Amps) 0.260A
Voltage Range 4 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0712
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368467-AFB0712HHB
Ultra Librarian 3D Model Ultra Librarian AFB0712HHB CAD Model

Description

The AFB0712HHB is a DC brushless fan from Delta Electronics.

  • Series: AFB series
  • Voltage Rating: 12VDC
  • Feature: Locked rotor protection
  • Current Rating: 0.260A
  • Power Consumption: 3.12W
  • Size: 70mm x 70mm
  • Shape: Square
  • Material: Plastic
  • Noise Level: 38.5dB(A)
  • Speed: 4300 RPM
  • Air Flow Rate: 37.5 CFM
  • Approvals: CE, CSA, UL, and VDE
  • Suitable for: Use in fans, thermal management, and other electronic devices
