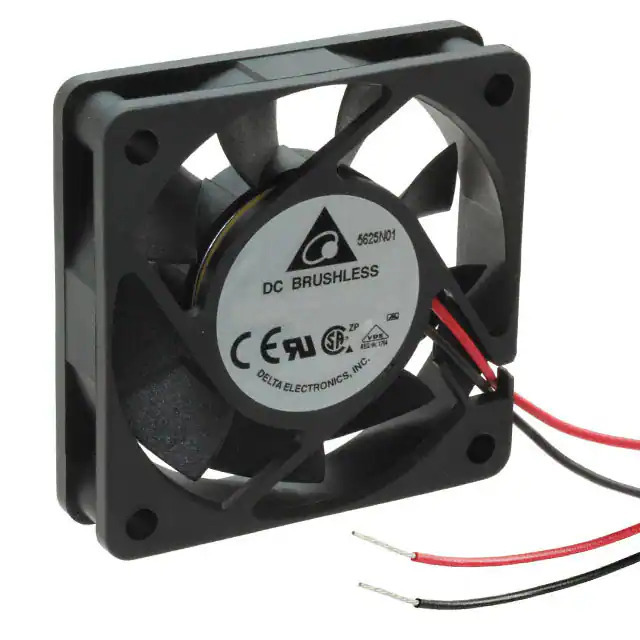

AFB0624SH-A Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0624SH-A

Part No AFB0624SH-A
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 60X25.4MM 24VDC WIRE
Datasheet
AFB0624SH-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Box
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 60mm L x 60mm H
Width 25.40mm
Air Flow 34.2 CFM (0.958m³/min)
Static Pressure 0.422 in H2O (105.1 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 44.5dB(A)
Power (Watts) 4.08 W
RPM 6000 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.176 lb (80.00 g)
Current Rating (Amps) 0.170A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0624
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368458-AFB0624SH-A
Ultra Librarian 3D Model Ultra Librarian AFB0624SH-A CAD Model

Description

The Delta Electronics AFB0624SH-A is a compact and efficient DC brushless fan designed for thermal management in electronic devices.

  • Voltage Rating: 24VDC
  • Current Rating: 0.170A
  • Shape: Square
  • Dimensions: 60mm L x 60mm H
  • Maximum Air Flow: 34.2 CFM
  • Static Pressure: 0.422 in H2O
  • Speed: 6000 RPM
  • Noise Level: 44.5dB(A)
  • Bearing: Ball Bearing
  • Approvals: CE, CSA, UL, and VDE
  • Weight: 0.176 lb
  • Series: AFB series by Delta Electronics
  • Feature: Locked rotor protection
