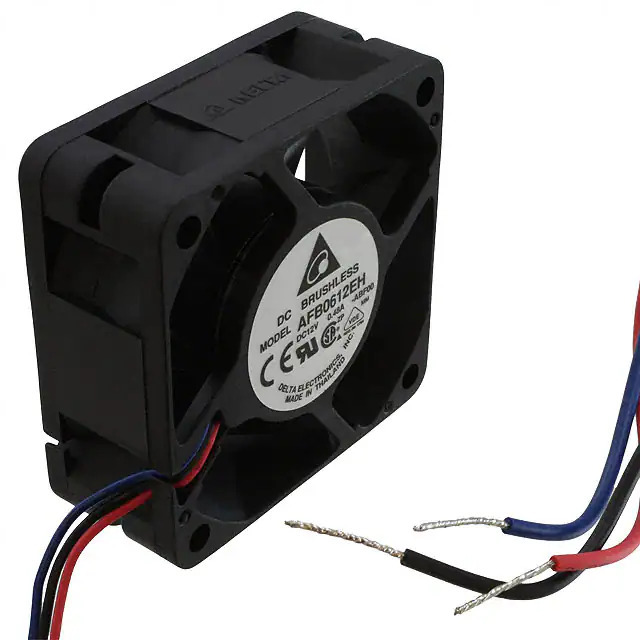

AFB0612EH-ABF00 Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0612EH-ABF00

Part No AFB0612EH-ABF00
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 60X25.4MM 12VDC WIRE
Datasheet
AFB0612EH-ABF00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Tray
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 60mm L x 60mm H
Width 25.40mm
Air Flow 38.4 CFM (1.08m³/min)
Static Pressure 0.544 in H2O (135.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 46.5dB(A)
Power (Watts) 4.56 W
RPM 6800 RPM
Termination 3 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.176 lb (80.00 g)
Current Rating (Amps) 0.380A
Voltage Range 4 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0612
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368389-AFB0612EH-ABF00
Ultra Librarian 3D Model Ultra Librarian AFB0612EH-ABF00 CAD Model

Description

The AFB0612EH-ABF00 is a 60mm square DC brushless fan from Delta Electronics.

  • Voltage: 12VDC
  • Current Rating: 0.380A
  • Power Rating: 4.56W
  • Maximum Noise Level: 46.5dB(A)
  • Lifetime: 70,000 hours @ 40°C
  • Operating Temperature: 14°F to 158°F (-10°C to 70°C)
  • Series: AFB
  • Packaging: Tray
  • Protection: Locked Rotor
  • Features: Speed Sensor (tach)
  • Approvals: CE, CSA, UL, and VDE
