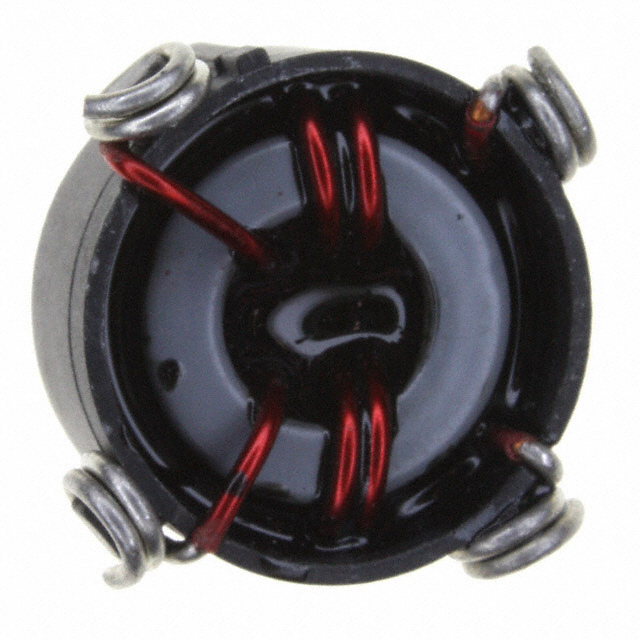

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Number of Lines 2
Inductance @ Frequency 100 µH @ 10 kHz
Current Rating (Max) 8.5A
DC Resistance (DCR) (Max) 5mOhm
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Surface Mount
Size / Dimension 0.630" L x 0.630" W (16.00mm x 16.00mm)
Height (Max) 0.320" (8.13mm)
Case / Package Horizontal, 4 PC Pad
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1530459-CM6560-104
Ultra Librarian 3D Model Ultra Librarian CM6560-104 CAD Model
