Same model may have multiple batches, images only for reference.

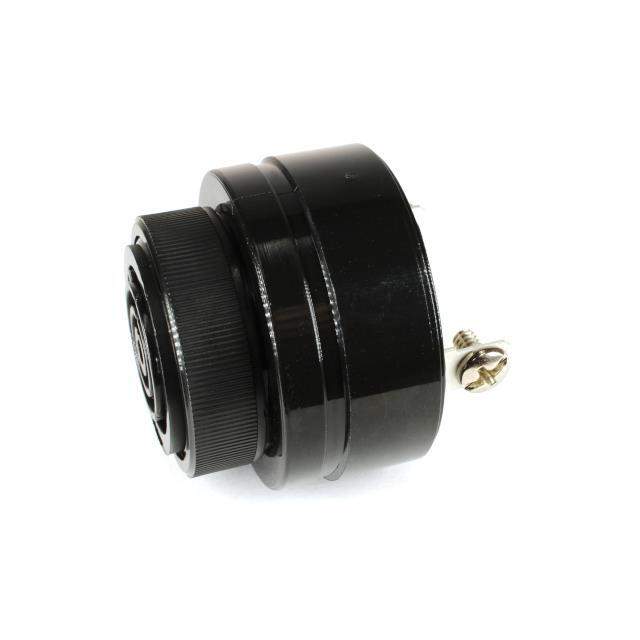

SC628F Real Image
Same model may have multiple batches, images only for reference.

SC628F

Part No SC628F
Manufacturer Mallory Sonalert Products Inc.
Catalog Audio Accessories
Description BUZZER PIEZO 42.98MM PNL MNT / Buzzers Indicator, Internally Driven Piezo 2 ~ 4mA 2.9kHz 55dB @ 6V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Datasheet
SC628F Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr Mallory Sonalert Products Inc.
Series SC
Package Bulk
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage Range 6 ~ 28V
Frequency 2.9kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 55dB @ 6V, 61cm
Current - Supply 2 ~ 4mA
Port Location Top
Temperature Range - Operating -30°C ~ 65°C
Mounting Type Panel Mount
Termination Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Dimension 1.692" Dia (42.98mm)
Height - Seated (Max) 1.330" (33.77mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Standard Package 1
Win Source Part Number 1181947-SC628F
Ultra Librarian 3D Model Ultra Librarian SC628F CAD Model

Description

The Mallory Sonalert Products Inc. SC628F is a high-quality audio product that is designed to provide reliable performance.

  • Applications: alarms, buzzers, and sirens, such as industrial automation, automotive electronics, and medical devices
  • Technology: piezo technology
  • Input: DC input
  • Frequency: 2.9kHz
  • Operating Temperature: -30°C to 65°C
  • Mounting: panel
  • Sound Pressure Level: 55dB @ 6V, 61cm
  • Package: bulk
  • RoHS: non-compliant
