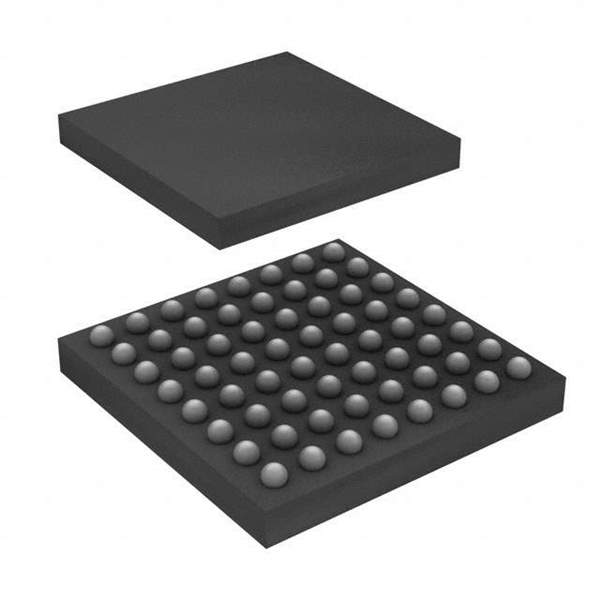

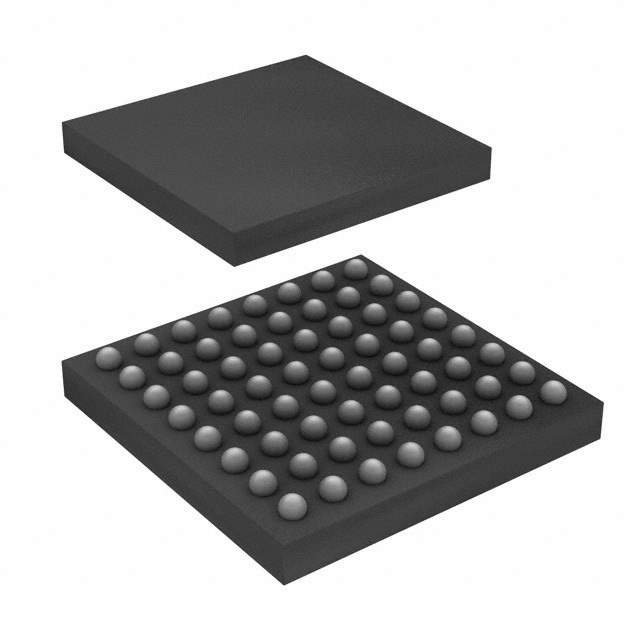

Same model may have multiple batches, images only for reference.

CYW20730A2KFBG

Name: CYW20730A2KFBG
Brand: Cypress Semiconductor Corp
SKU: 986100
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CYW20730A2KFBG
Manufacturer	Cypress Semiconductor Corp
Catalog	RF Receivers
Description	IC RF TXRX+MCU BLUETOOTH 64VFBGA / IC RF TxRx + MCU Bluetooth Bluetooth v3.0 2.4GHz 64-VFBGA
Datasheet	CYW20730A2KFBG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF/IF and RFID>RF Transceiver ICs
Mfr	Cypress Semiconductor Corp
Package	Tray
Type	TxRx + MCU
RF Family/Standard	Bluetooth
Protocol	Bluetooth v3.0
Modulation	GFSK
Frequency	2.4GHz
Data Rate (Max)	1Mbps
Power - Output	4dBm
Sensitivity	-88dBm
Serial Interfaces	I2C, SPI, UART
GPIO	4
Voltage - Supply	1.2V
Current - Receiving	26.6mA
Current - Transmitting	19mA ~ 24mA
Temperature Range - Operating	0°C ~ 70°C
Mounting	SMD (SMT)
Package / Case	64-VFBGA
Supplier Device Package	64-FBGA (7x7)
Base Product Number	CYW20730
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	5A992C
HTSUS	8542.39.0001
Other Names	428-3928-ND,428-3652,2832-CYW20730A2KFBG,428-3928,2015-CYW20730A2KFBG,428-3928INACTIVE,428-3652-ND
Standard Package	2,600
Win Source Part Number	986100-CYW20730A2KFBG
Ultra Librarian 3D Model	Ultra Librarian CYW20730A2KFBG CAD Model

Description

The Cypress Semiconductor Corp CYW20730A2KFBG is an RF transceiver IC that operates at a frequency of 2.4GHz.

Type: TxRx + MCU
Standard Package: 2,600
Protocol: Bluetooth v3.0
Modulation: GFSK
Sensitivity: -88dBm
Power - Output: 4dBm
Current - Receiving: 26.6mA
Current - Transmitting: 19mA ~ 24mA
GPIO: 4
Serial Interfaces: I2C, SPI, UART
Voltage - Supply: 1.2V
Package / Case: 64-VFBGA
RoHS: Compliant
REACH Status: REACH unaffected
