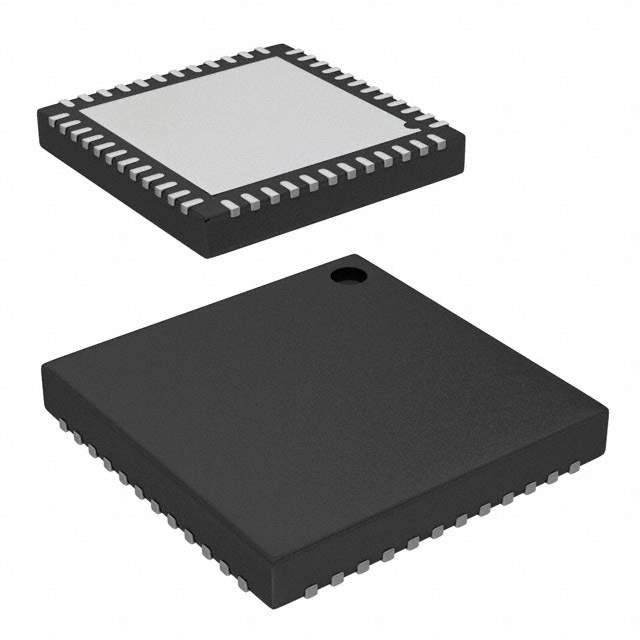

CY8C27643-24LFXIT Real Image
Same model may have multiple batches, images only for reference.

CY8C27643-24LFXIT

Part No CY8C27643-24LFXIT
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description PSoC Mixed Signal Array
Datasheet
CY8C27643-24LFXIT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cypress Semiconductor Corp
Series PSOC1 CY8C27xxx
Packaging Reel - TR
Part Status Obsolete(EOL)
Core Processor M8C
Core Size 8-Bit
Speed 24MHz
Connectivity I2C, SPI, UART/USART
Peripherals POR, PWM, WDT
Number of I/O 44
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 256 x 8
Supply Voltage 3 V ~ 5.25 V
Data Converters A/D 4x14b; D/A 4x9b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Package 48-VFQFN Exposed Pad
Manufacturer Package 48-QFN (7x7)
Win Source Part Number 1165823-CY8C27643-24LFXIT
Manufacturer Homepage www.cypress.com
Popularity Medium
Supply and Demand Status Limited
Family Name CY8C27643
Introduction Date August 27, 2003
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CY8C27643-24LFXIT CAD Model

Description

The Cypress Semiconductor Corp CY8C27643-24LFXIT is an integrated circuit with a core processor of M8C.

  • Speed: 24MHz
  • Package Size: 48-VFQFN Exposed Pad
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
  • Core Size: 8-bit
  • Connectivity: I2C, SPI, and UART/USART
  • Peripherals: POR, PWM, and WDT
  • Program Memory Size: 16KB (16K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 256 x 8
  • Data Converters: A/D 4x14b; D/A 4x9b
  • Oscillator Type: Internal
  • Supply Voltage: 3 V ~ 5.25 V
