CY8C21323-24LFXI

Part No CY8C21323-24LFXI
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 4KB FLASH 24QFN / MCU 8-bit M8C 4KB Flash 2.5V/3.3V/5V 24-Pin QFN EP Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cypress Semiconductor Corp
Standard Package 980
Category Integrated Circuits(ICs)
Family Embedded - Microcontrollers
Series PSOC1 CY8C21xxx
Packaging Tray
Core Processor M8C
Core Size 8-Bit
Speed 24MHz
Connectivity I²C SPI UART/USART
Peripherals POR PWM WDT
Number of I/O 16
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
RAM Size 256 x 8
Operating Supply Voltage 2.4 V ~ 5.25 V
Data Converters A/D 8x8b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)

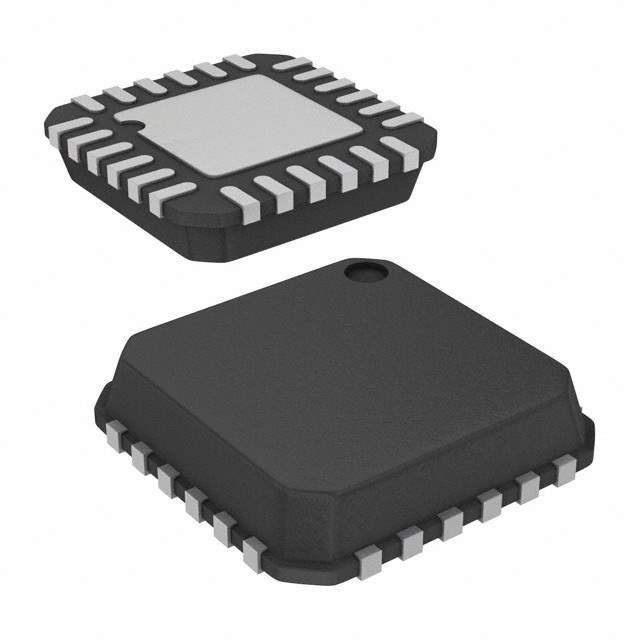

Package 24-VFQFN Exposed Pad
Manufacturer Device Package 24-QFN-EP (4x4)
Win Source Part Number 089638-CY8C21323-24LFXI
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name CY8C21323
Introduction Date March 15, 2003
ECCN EAR99
Country of Origin Republic of Korea
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CY8C21323-24LFXI CAD Model

Description

The CY8C21323-24LFXI variant offers similar functionalities as the CY8C21323-24LFX but with enhanced industrial-grade specifications, making it ideal for environments requiring higher reliability and durability.

Features and Benefits

  • Extended temperature range to accommodate industrial applications.
  • Robust design to withstand harsh operating conditions.
  • Programmable architecture for customization and flexibility.

Applications

  • Industrial control systems.
  • Automotive electronics.
  • Advanced instrumentation and measurement equipment.

This model is specifically engineered to meet the demands of more challenging environments while maintaining excellent functionality.
