Same model may have multiple batches, images only for reference.

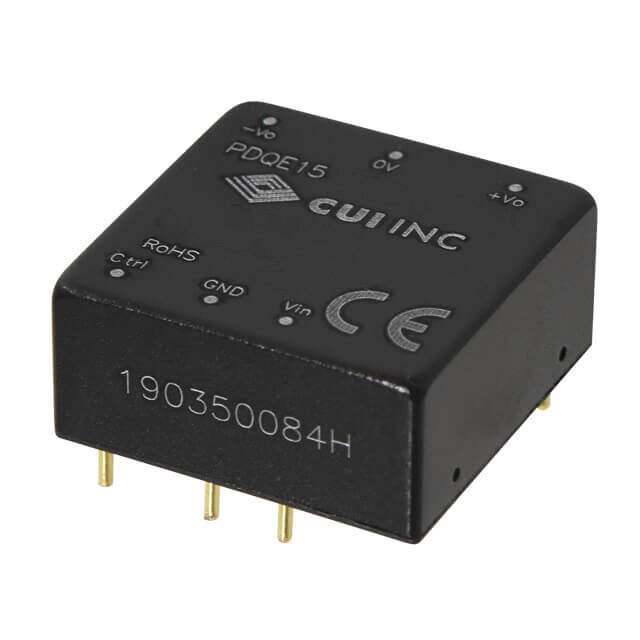

PDQE15-Q24-S5-D Real Image
Same model may have multiple batches, images only for reference.

PDQE15-Q24-S5-D

Part No PDQE15-Q24-S5-D
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 15W / Isolated Module DC DC Converter 1 Output 5V 3A 9V - 36V Input
Datasheet
PDQE15-Q24-S5-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PDQE15-D (15W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 3A
Power (Watts) 15 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 95°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Approval Agency CB Scheme, EN, IEC, UL
Standard Number 55024; 55032 Class A; 62368-1
Base Product Number PDQE15
Standard Package 19
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1349809-PDQE15-Q24-S5-D
Ultra Librarian 3D Model Ultra Librarian PDQE15-Q24-S5-D CAD Model

Description

The CUI Inc. PDQE15-D (15W) series DC-to-DC converter, PDQE15-Q24-S5-D, is a 15W power supply module in a 6-DIP package.

  • Power: 15W
  • Input Voltage: 9V to 36V
  • Output Voltage: 5V
  • Efficiency: 90%
  • Maximum Output Current: 3A
  • Voltage Isolation: 1.5 kV
  • Features: SCP, OCP, OVP, and remote on/off
  • Applications: ITE (Commercial)
  • Approvals: CB Scheme, EN, IEC, and UL
  • Operating Temperature: -40°C to 95°C with derating
