Same model may have multiple batches, images only for reference.

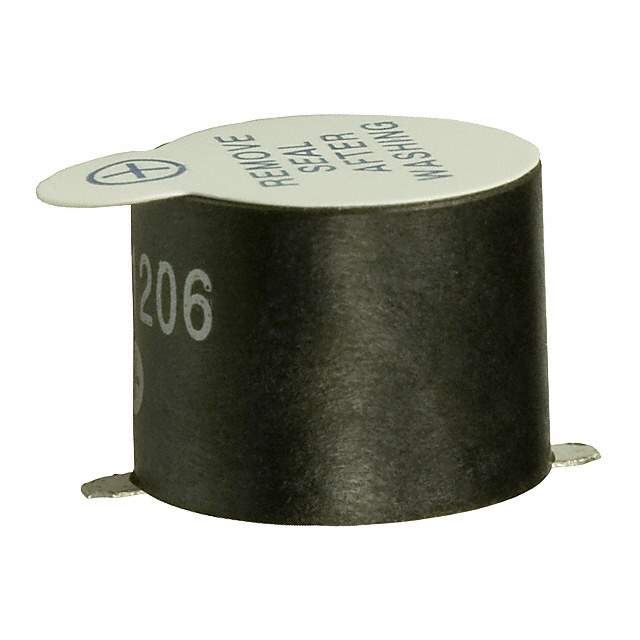

CD-1206-SMT Real Image
Same model may have multiple batches, images only for reference.

CD-1206-SMT

Part No CD-1206-SMT
Manufacturer CUI Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO MAGNETIC XDCR 4-8V SMD / Audio Transducer Magnetic 4Vo-p 8Vo-p 40mA 5Vo-p 85dBA Surface Mount Solder Pad
Datasheet
CD-1206-SMT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer CUI Inc.
Packaging Bulk
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage Rating DC 5V
Voltage Range 4 ~ 8V
Frequency 2.4kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 85dB @ 5V, 10cm
Operating Supply Current 40mA
Port Location Top
Operating Temperature Range -40°C ~ 70°C
Ratings Washable
Mounting SMD
Termination Solder Pads
Dimension 0.472" Dia (12.00mm)
Height - Seated (Maximum) 0.374" (9.50mm)
Win Source Part Number 771322-CD-1206-SMT
Popularity Medium
Supply and Demand Status Limited
Introduction Date February 01, 2018
ECCN EAR99
Estimated EOL Date 2032
Ultra Librarian 3D Model Ultra Librarian CD-1206-SMT CAD Model

Description

The CUI Inc. 771322-CD-1206-SMT is a magnetic audio product.

  • Operating Mode: Single Tone
  • Operating Temperature: -40°C to 70°C
  • Voltage Range: 4-8V
  • Supply and Demand: Limited
  • Washable: Yes
  • Sound Pressure Level: 85dB @ 5V, 10cm
  • Height: 0.374” (9.50mm)
  • Dimension: 0.472” Dia (12.00mm)
