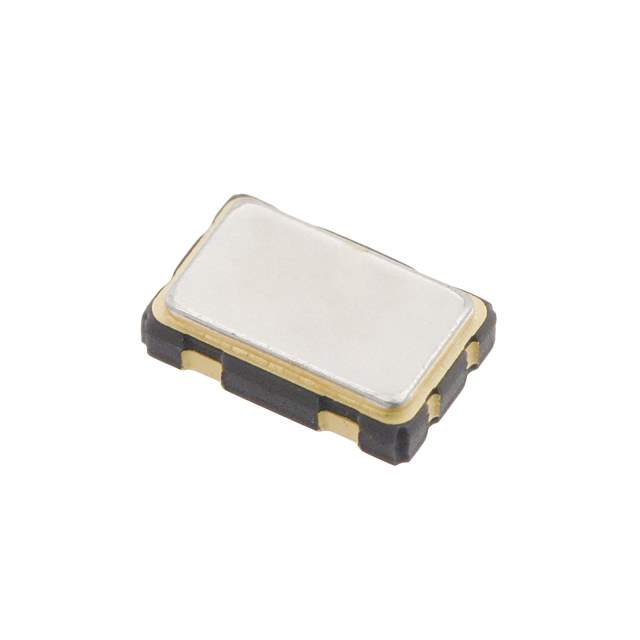

636L3C016M38400 Real Image
Same model may have multiple batches, images only for reference.

636L3C016M38400

Part No 636L3C016M38400
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC XO 16.3840MHZ HCMOS TTL / 16.384 MHz XO (Standard) HCMOS, TTL Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr CTS-Frequency Controls
Series 636
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 16.384 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 16mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names CTX692CT,CTX692DKR,636L3C016.38400,CTX692TR
Standard Package 1,000
Win Source Part Number 1176893-636L3C016M38400
Ultra Librarian 3D Model Ultra Librarian 636L3C016M38400 CAD Model

Description

The CTS-Frequency Controls 1176893-636L3C016M38400 is a surface mount crystal oscillator (XO) that operates at a frequency of 16.384 MHz.

  • Oscillator Type: Crystal Oscillator (XO)
  • Frequency: 16.384 MHz
  • Package: 4-SMD, No Lead
  • Height: 0.051 inches
  • Enable/Disable Function: Yes
  • Output: HCMOS and TTL
  • Frequency Stability: ±50ppm
  • Current Supply: 16mA
  • Voltage Supply: 3.3V (Max)
