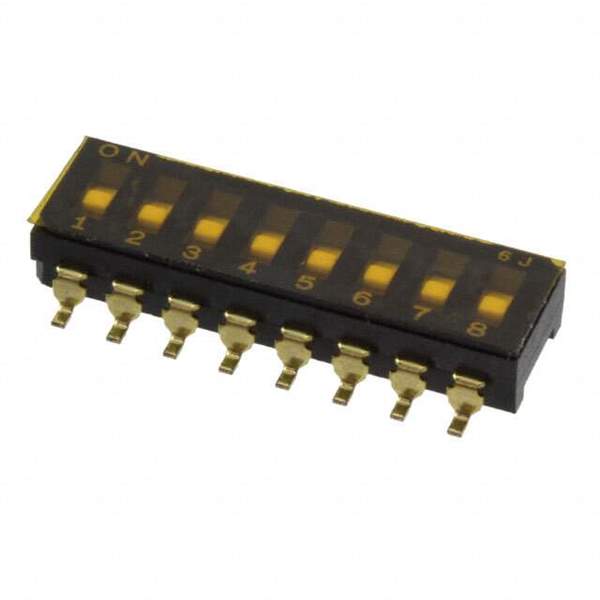

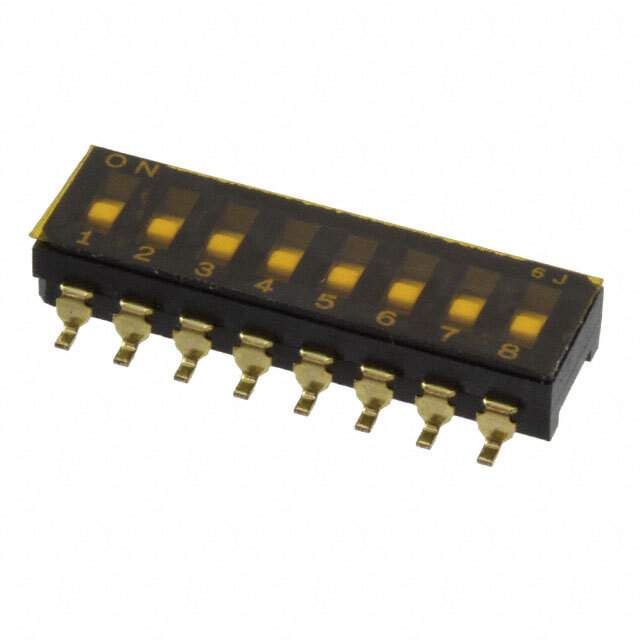

CFS-0803MB Real Image
Same model may have multiple batches, images only for reference.

CFS-0803MB

Part No CFS-0803MB
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH DIP 8POS SPST 100MA 6V / Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC
Datasheet
CFS-0803MB Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Nidec Copal Electronics
Series CFS
Package Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.185" (4.70mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.858" (21.80mm)
Electrical Life 1,000 Cycles
Base Product Number CFS-0803
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 563-CFS-0803MB
Standard Package 100
Win Source Part Number 958284-CFS-0803MB
Ultra Librarian 3D Model Ultra Librarian CFS-0803MB CAD Model

Description

The Nidec Copal Electronics CFS-0803 is an 8-position DIP switch with a SPST circuit and a slide actuator type. Bold the product name (e.g., CFS-0803 → CFS-0803) and manufacturer (e.g., Nidec Copal Electronics → Nidec Copal Electronics).

  • Circuit: SPST
  • Actuator Type: Slide
  • Number of Positions: 8
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull-Wing
  • Contact Rating: 100mA
  • Voltage Rating: 6VDC
  • Temperature Range: -40°C to 85°C
  • Mechanical Life: 1000 cycles
  • Package: Tube
  • Mounting Type: Surface Mount
  • Height Above Board: 0.185" (4.70mm)
