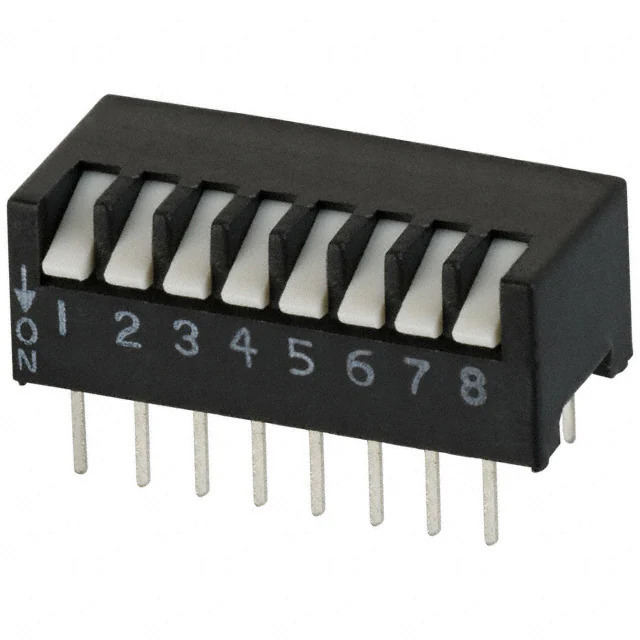

Same model may have multiple batches, images only for reference.
195-8MST CTS Electrocomponents
Same model may have multiple batches, images only for reference.

195-8MST

Part No 195-8MST
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 50MA 24V
Datasheet
195-8MST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 195
Package Tube
Product Status Active
Circuit SPST
Number of Positions 8
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Material -
Contact Finish Tin
Height Above Board 0.311" (7.90mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Plastic
Length 0.886" (22.50mm)
Mechanical Life -
Electrical Life 2,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376394-195-8MST
Ultra Librarian 3D Model Ultra Librarian 195-8MST CAD Model

Description

The CTS Electrocomponents 195 series DIP switch is a through-hole switch with a piano actuator.

  • Positions: 8
  • Current Rating: 50mA
  • Contact Finish: Tin
  • Voltage Rating: 24VDC
  • Pitch: 0.100" (2.54mm)
  • Circuit: SPST (single-pole single-throw)
  • Termination Style: PC Pin
  • Mounting: Through Hole, Right Angle
  • Height Above Board: 0.311" (7.90mm)
  • Length: 0.886" (22.50mm)
  • Washable: Yes
  • Material: Plastic
