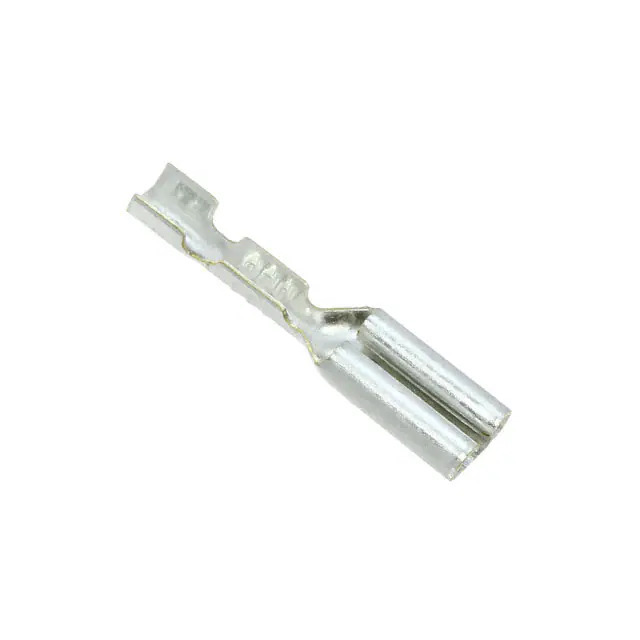

Same model may have multiple batches, images only for reference.
140716-2 TE Connectivity
Same model may have multiple batches, images only for reference.

140716-2

Part No 140716-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 22-24AWG 0.110 / 0.110" (2.79mm) Quick Connect Female 22-24 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.248" (6.30mm)
Length - Overall 0.630" (16.00mm)
Termination Crimp
Wire Gauge 22-24 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Base Product Number 140716
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364963-140716-2
Ultra Librarian 3D Model Ultra Librarian 140716-2 CAD Model

Description

The TE Connectivity AMP Connectors 140716 is a standard terminal type quick connect connector.

  • Terminal Type: Standard
  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge: 22-24 AWG
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Insulation Diameter: 0.040" to 0.060"
  • Overall Length: 0.630"
  • Tab Width: 0.110"
  • Tab Thickness: 0.020"
  • Tab Length: 0.248"
