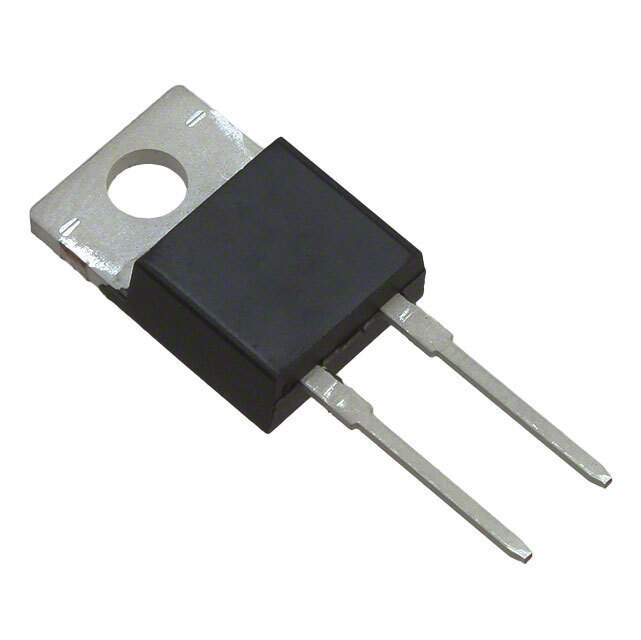

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Cree/Wolfspeed
Packaging Tube
Part Status Obsolete(EOL)
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 600V
Current - Average Rectified (Io) 3.5A
Voltage - Forward (Vf) (Maximum) @ If 1.8V @ 2A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 200μA @ 600V
Capacitance @ Vr, F 120pF @ 0V, 1MHz
Mounting Style Through Hole
Package TO-220-2
Manufacturer Package TO-220-2
Operating Temperature - Junction -55°C ~ 175°C
Win Source Part Number 771853-CSD02060A
Popularity Medium
Supply and Demand Status Limited
Family Name CSD02060A
Introduction Date September 02, 2015
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CSD02060A CAD Model

Description

The Cree/Wolfspeed CSD02060A is a Silicon Carbide Schottky diode that comes in a TO-220-2 package.

  • Maximum Forward Voltage: 1.8V @ 2A
  • Reverse Voltage: 600V
  • Average Rectified Current: 3.5A
  • Reverse Recovery Time: 0ns
  • Capacitance: 120pF @ 0V, 1MHz
  • Current Leakage: 200μA @ 600V
  • Status: Obsolete
  • Application: Discrete semiconductor products
  • Supply and Demand Status: Limited
