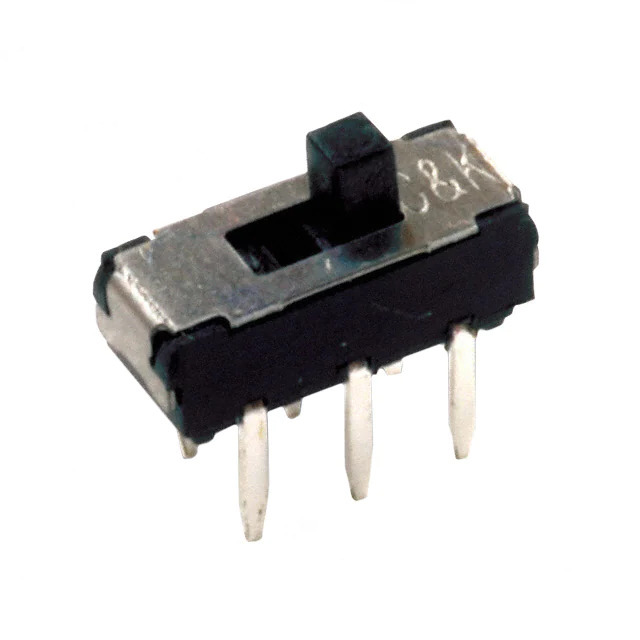

JS202011CQN C&K Components
Same model may have multiple batches, images only for reference.

JS202011CQN

Part No JS202011CQN
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 300MA 6V
Datasheet
JS202011CQN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr C&K
Series JS
Package Bulk
Product Status Active
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 6 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 2.00mm
Mechanical Life -
Electrical Life 5,000 Cycles
Operating Force -
Base Product Number JS202011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376330-JS202011CQN
Ultra Librarian 3D Model Ultra Librarian JS202011CQN CAD Model

Description

The JS202011CQN is a through-hole slide switch from the JS series manufactured by C&K.

  • Circuit: DPDT
  • Switch Function: On-On
  • Current Rating (DC): 300mA
  • Voltage Rating (DC): 6V DC
  • Switch Travel: 2.00mm
  • Actuator Length: 2.00mm
  • Actuator Material: Polyamide (PA46) and nylon 4/6
  • Contact Finish: Silver
  • Termination Style: PC Pin
  • Electrical Life: 5,000 cycles
