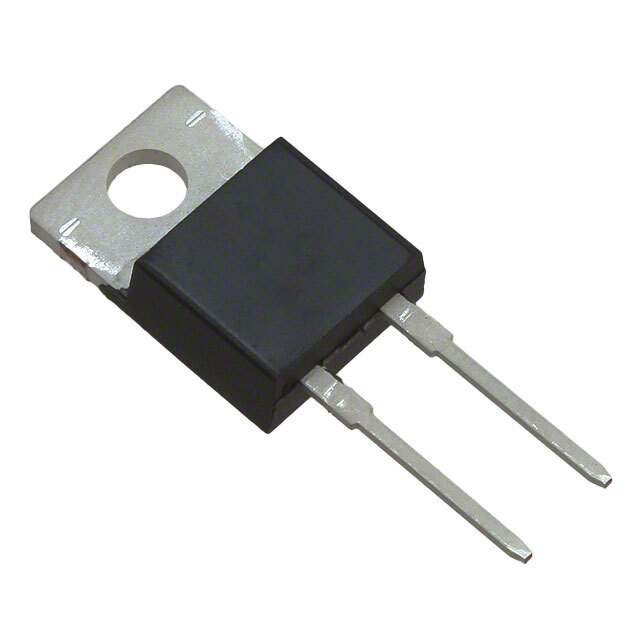

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 8 Weeks
Features Diode Silicon Carbide Schottky 650 V 37A (DC) Through Hole TO-220-2
Manufacturer Cree/Wolfspeed
Series Z-Rec®
Package Tube
Speed No Recovery Time > 500mA (Io)
Mounting Through Hole
Package TO-220-2
Case / Package TO-220-2
Family Name C6D10065
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 865662-C6D10065A
Ultra Librarian 3D Model Ultra Librarian C6D10065A CAD Model

Description

The Cree/Wolfspeed C6D10065A is a diode silicon carbide Schottky with a voltage rating of 650V and a maximum current rating of 37A (DC).

  • Voltage Rating: 650V
  • Maximum Current Rating: 37A (DC)
  • No Recovery Time: > 500mA (Io)
  • Package: TO-220-2
  • Ideal For: High-efficiency power supplies, solar inverters, and motor drives
  • ECCN: EAR99
  • Popularity: Medium
  • Estimated Production Lead Time: 8 weeks
