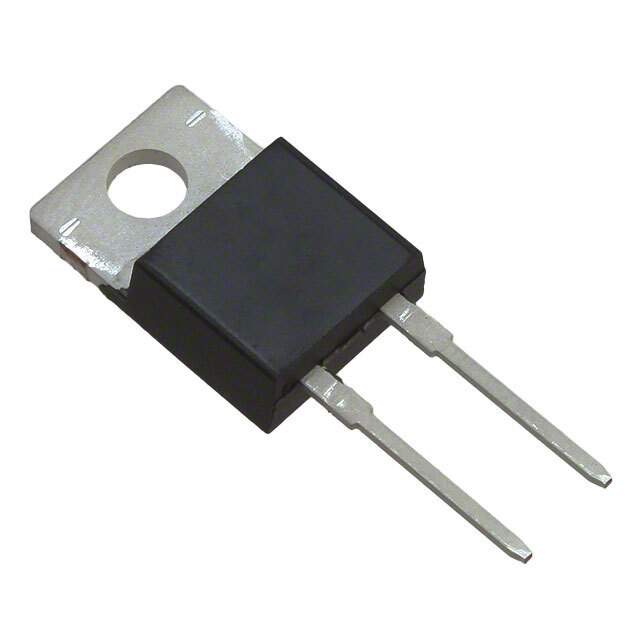

C3D06065A Real Image
Same model may have multiple batches, images only for reference.

C3D06065A

Part No C3D06065A
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 650V 6A TO220-2 / Silicon Carbide Schottky Diode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cree/Wolfspeed
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 650V
Current - Average Rectified (Io) 19A (DC)
Voltage - Forward (Vf) (Maximum) at If 1.8V at 6A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage at Vr 60μA at 650V
Capacitance at Vr, F 294pF at 0V, 1MHz
Mounting Style Through Hole
Manufacturer Package TO-220-2
Supplier Device Package TO-220-2
Operating Temperature - Junction -55°C ~ 175°C
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812747-C3D06065A
Ultra Librarian 3D Model Ultra Librarian C3D06065A CAD Model

Description

The Cree/Wolfspeed 812747-C3D06065A is a silicon carbide Schottky diode.

  • Maximum Reverse Voltage: 650V
  • Maximum Forward Voltage: 1.8V @ 6A
  • Current Rating: 19A
  • Reverse Leakage Current: 60μA @ 650V
  • Capacitance: 294pF @ 0V, 1MHz
  • Package: TO-220-2
  • Operating Temperature: -55°C to 175°C
  • Manufacturer Pack Quantity: 50
  • Popularity: Low
