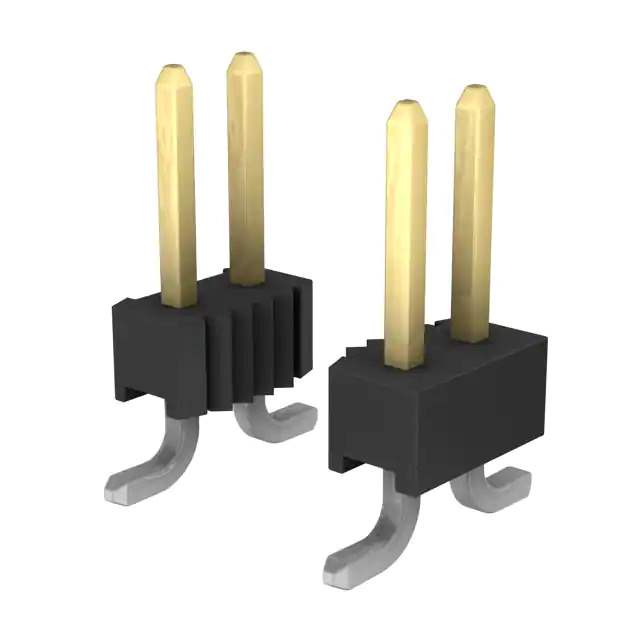

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU Mod II
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.228" (5.80mm)
Insulation Height 0.110" (2.79mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating Flash
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Features Pick and Place
Insulation Color Black
Contact Finish Thickness - Post 118.1µin (3.00µm)
Base Product Number 1241050
Standard Package 350 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853883-1241050-5
Ultra Librarian 3D Model Ultra Librarian 1241050-5 CAD Model

Description

The 792638 is a male pin header connector from the AMPMODU Mod II series manufactured by TE Connectivity.

  • Series: AMPMODU Mod II
  • Positions: 10
  • Connection Type: Board to Board / Cable
  • Fastening Type: Push-Pull
  • Mounting Type: Surface Mount
  • Contact Material: Brass
  • Contact Finish: Gold / Gold-Palladium
  • Insulation Material: PCT
  • Pitch: 0.100" (2.54mm)
  • Shrouding: Unshrouded
  • Temperature Range: Specified by the manufacturer
  • Standard Package: 350 pieces
