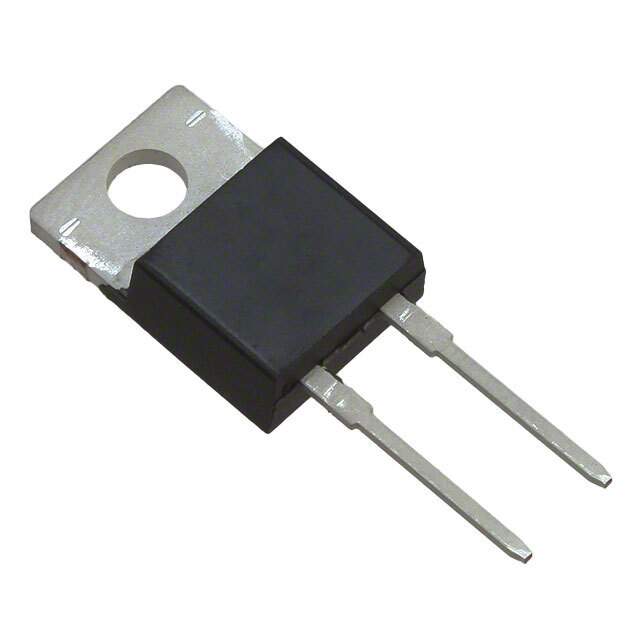

C4D02120A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Cree/Wolfspeed
Packaging Tube/Rail
Status Active
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200V (1.2kV)
Current - Average Rectified (Io) 2A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8V @ 2A
Speed(Frequency) No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 50μA @ 1200V
Capacitance @ Vr, F 167pF @ 0V, 1MHz
Mounting Through Hole
Case / Package TO-220-2
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 049997-C4D02120A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C4D02120A CAD Model

Description

Overview

The C4D02120A is a robust electronic component known for its superior performance in heavy-duty applications.

Applications

  • Electric vehicle systems
  • Industrial power systems
  • Renewable energy converters
  • Heavy machinery control units

Features and Benefits

  • High thermal conductivity for improved heat dissipation
  • Long-lasting with minimal degradation over time
  • Designed for easy integration into complex systems
  • Adaptable to high-stress environments

Additional Details

With its robust construction and reliability, the C4D02120A serves as an essential component in the evolution of efficient energy management systems.
