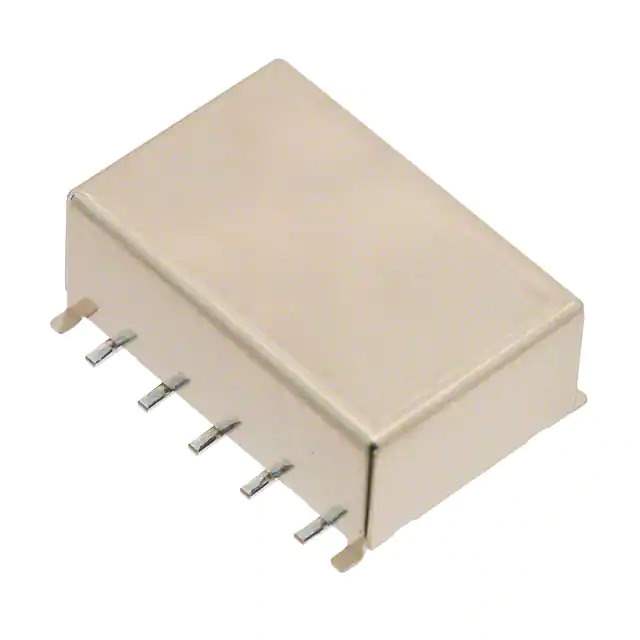

ARA220A05 Real Image
Same model may have multiple batches, images only for reference.

ARA220A05

Part No ARA220A05
Manufacturer Panasonic
Catalog High Frequency (RF) Relays
Description RELAY RF DPDT 1A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - High Frequency (RF) Relays
Mfr Panasonic
Series ARA
Package Tube
Product Status Active
Coil Type Latching, Dual Coil
Coil Current 28.1 mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 30VDC - Max
Must Operate Voltage 3.75 VDC
Operate Time 4 ms
Release Time 4 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Coil Power 140mW
Coil Resistance 178 Ohms
Base Product Number ARA220
Standard Package 40 pcs
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 564503-ARA220A05
Ultra Librarian 3D Model Ultra Librarian ARA220A05 CAD Model

Description

The ARA series high-frequency relay is a high-performance component designed for applications requiring fast and reliable switching.

  • Series: ARA
  • Type: High-Frequency Relay
  • Termination Style: Gull Wing
  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 1 A
  • Voltage: 30VDC
  • Coil Voltage: 5VDC
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer: Panasonic
  • Applications: Telecommunications, test and measurement equipment, and industrial control systems
