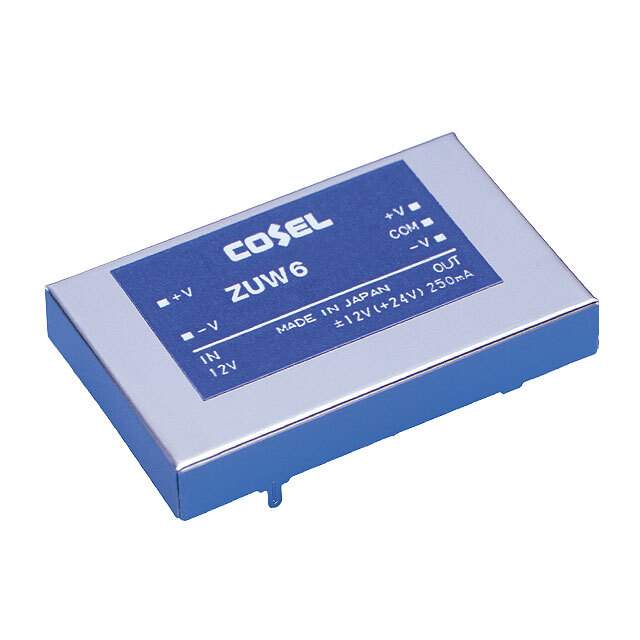

ZUW62415 Real Image
Same model may have multiple batches, images only for reference.

ZUW62415

Part No ZUW62415
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V / Module DC-DC 24VIN 2-OUT 15V/-15V 0.2A 6W 5-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Cosel USA, Inc.
Series ZUW
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 18V
Voltage Input MAX 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 200mA, 200mA
Voltage - Isolation 500V
Applications ITE (Commercial)
Features OCP
Operating Temperature Range -20°C ~ 71°C (With Derating)
Efficiency 77%
Mounting Style Through Hole
Package 5-DIP Module
Dimension 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm)
Win Source Part Number 800432-ZUW62415
Popularity Medium
Supply and Demand Status Limited
Family Name ZUW62415
Introduction Date August 22, 2005
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ZUW62415 CAD Model

Description

The Cosel USA ZUW62415 is a 5-DIP module isolated module DC-DC converter with two outputs.

  • Isolation Voltage: 500V
  • Applications: ITE (Commercial)
  • Dimensions: 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm)
  • Operating Temperature Range: -20°C to 71°C (with derating)
  • Input Voltage Range: 18V to 36V
  • Output 1 Voltage: 15V
  • Output 2 Voltage: -15V
  • Maximum Output Current (per output): 200mA
  • Efficiency: 77%
  • Features: Over-current protection (OCP)
