Same model may have multiple batches, images only for reference.

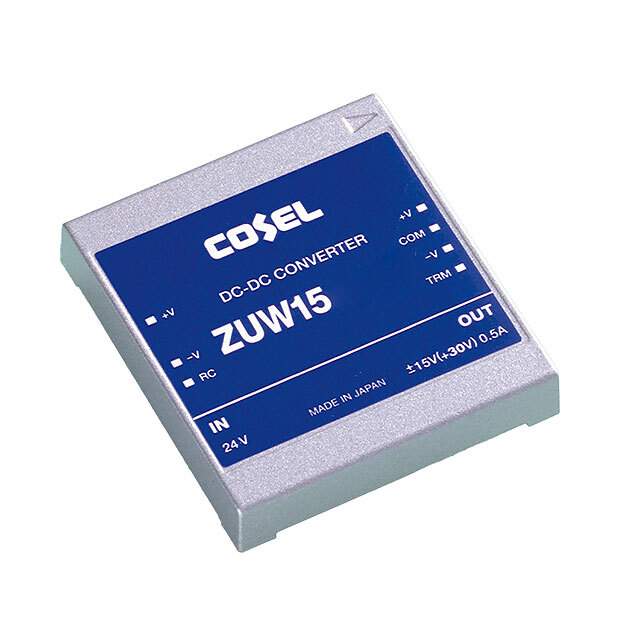

ZUW151212 Real Image
Same model may have multiple batches, images only for reference.

ZUW151212

Part No ZUW151212
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V -12V 650mA, 650mA 9V - 18V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Cosel USA, Inc.
Series ZUW (15W)
Package Box
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 650mA, 650mA
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -20°C ~ 71°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1776-1891
Standard Package 1
Win Source Part Number 1020868-ZUW151212
Ultra Librarian 3D Model Ultra Librarian ZUW151212 CAD Model

Description

The Cosel USA, Inc. ZUW (15W) is an isolated module power supply with a remote On/Off feature and Over Current Protection (OCP) and Over Voltage Protection (OVP) features.

  • Manufacturer: Cosel USA, Inc.
  • Series: ZUW (15W)
  • Type: Isolated Module Power Supply
  • Features: Remote On/Off, Over Current Protection (OCP), Over Voltage Protection (OVP)
  • Standard Package: 1
  • Voltage Isolation: 500V
  • Number of Outputs: 2
  • Maximum Output Current: 650mA (each output)
  • Input Voltage Range: 9V to 18V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Efficiency: 83%
  • Mounting Type: Through-Hole
  • Temperature Range: -20°C to 71°C (With Derating)
  • Dimension: 1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm)
  • Status: Obsolete
