Same model may have multiple batches, images only for reference.

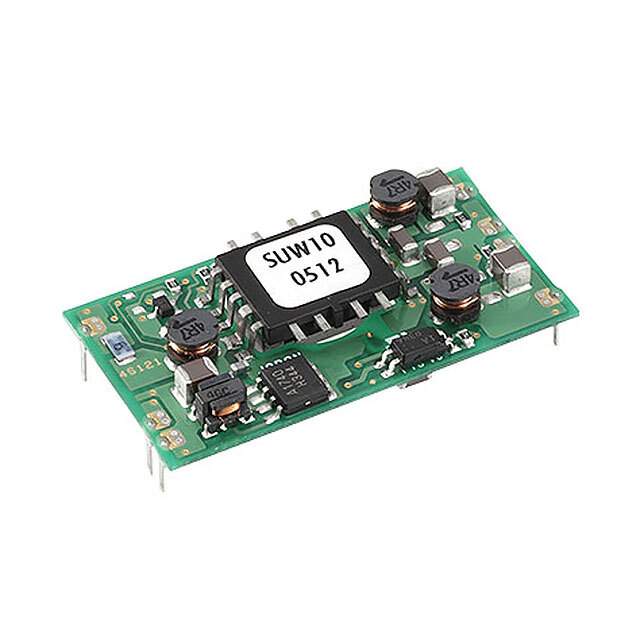

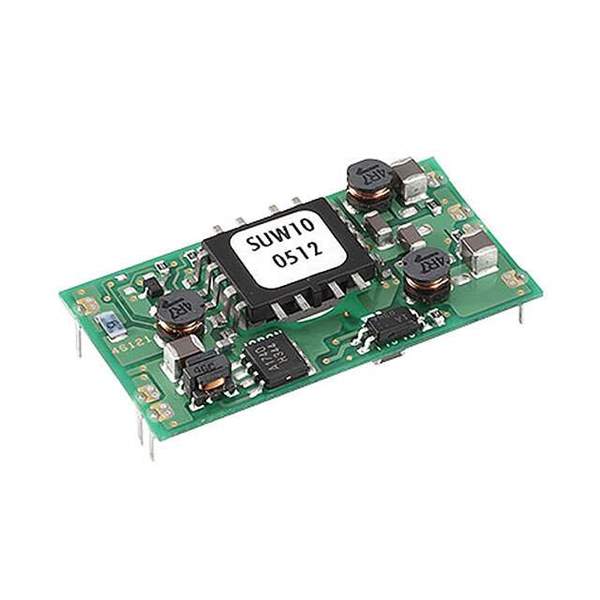

SUW100512C Real Image
Same model may have multiple batches, images only for reference.

SUW100512C

Part No SUW100512C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 24V 11W / Isolated Module DC DC Converter 2 Output 12V -12V 24V 450mA, 450mA 4.5V - 9V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Cosel USA, Inc.
Series SUW (10W)
Package Box
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Voltage - Output 3 24V
Current - Output (Max) 450mA, 450mA
Power (Watts) 11 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 86%
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 1.54" L x 0.83" W x 0.26" H (39.2mm x 21.0mm x 6.5mm)
Base Product Number SUW100512
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1776-2820,SUW100512C-ND
Standard Package 1
Win Source Part Number 1023670-SUW100512C
Ultra Librarian 3D Model Ultra Librarian SUW100512C CAD Model

Description

The Cosel USA SUW (10W) series is an isolated module DC DC converter that offers 2 outputs.

  • Current Output (max): 450mA, 450mA
  • Power (watts): 11W
  • Voltage Isolation: 500V
  • Number of Outputs: 2
  • Voltage Input (min): 4.5V
  • Voltage Input (max): 9V
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Voltage Output 3: 24V
  • Efficiency: 86%
  • Package: box
  • Type: power supply board mount
  • ECCN: EAR99 compliant
  • Mounting Type: through hole
  • Package: 7-DIP module
  • Operating Temperature: -40°C to 85°C with derating
  • HTSUS code: 8504.40.9580
