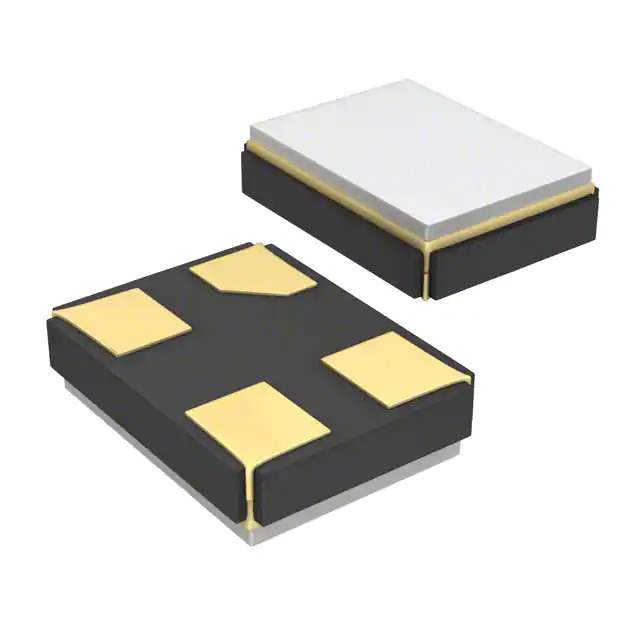

8Z20070010 Real Image
Same model may have multiple batches, images only for reference.

8Z20070010

Part No 8Z20070010
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 20.0000MHZ 8PF SMD / 20 MHz ±7ppm Crystal 8pF 100 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 8Z
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±7ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.022" (0.55mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 858561-8Z20070010
Ultra Librarian 3D Model Ultra Librarian 8Z20070010 CAD Model

Description

The 858561-8Z20070010 is a MHz Crystal from the 8Z series.

  • Series: 8Z
  • Package: 4-SMD, No Lead
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Seated Height: 0.022" (0.55mm)
  • Frequency: 20 MHz
  • ESR: 100 Ohms
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±7ppm
  • Load Capacitance: 8pF
  • Mode: Fundamental
  • Mounting: Surface Mount
  • Temperature Range: -20°C to 70°C
