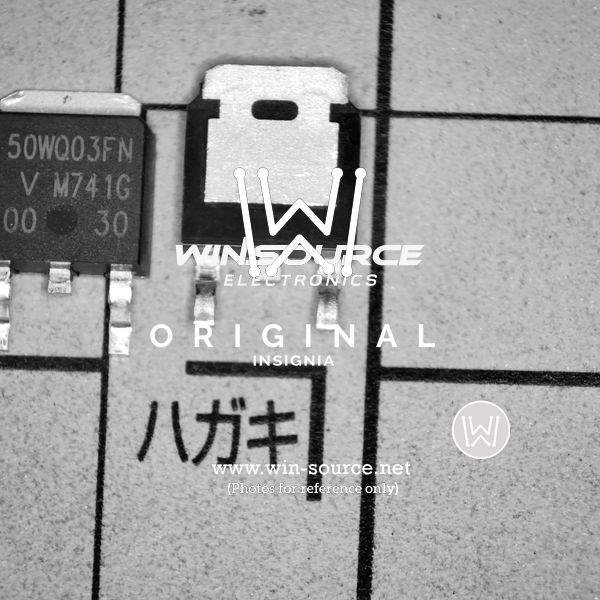

VS-50WQ03FN-M3 Vishay VS-50WQ03FN-M3 Real Image
Same model may have multiple batches, images only for reference.
VS-50WQ03FN-M3 Vishay VS-50WQ03FN-M3 Real Image
VS-50WQ03FN-M3 Vishay VS-50WQ03FN-M3 Real Image
Same model may have multiple batches, images only for reference.

VS-50WQ03FN-M3

Part No VS-50WQ03FN-M3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 5.5A DPAK
Datasheet
VS-50WQ03FN-M3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 5.5A
Voltage - Forward (Vf) (Max) @ If 460mV @ 5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 3mA @ 30V
Capacitance @ Vr, F 590pF @ 5V, 1MHz
Mounting SMD (SMT)
Case / Package D-PAK (TO-252AA)
Operating Temperature - Junction -40°C to 150°C
Win Source Part Number 1005941-VS-50WQ03FN-M3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VS-50WQ03FN-M3 CAD Model

Description

Vishay's Schottky diode is a high-performance rectifier designed for use in various electronic applications.

  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 5.5A
  • Suitable for: Circuits that require fast switching and low power loss
  • Mounting: SMD (SMT)
  • Case/Package: D-PAK (TO-252AA)
  • Recovery Speed: 200mA (Io)
  • Forward Voltage: 460mV @ 5A
  • Reverse Leakage Current: 3mA @ 30V
  • Capacitance: 590pF @ 5V and 1MHz
  • Operating Temperature Range: -40°C to 150°C
