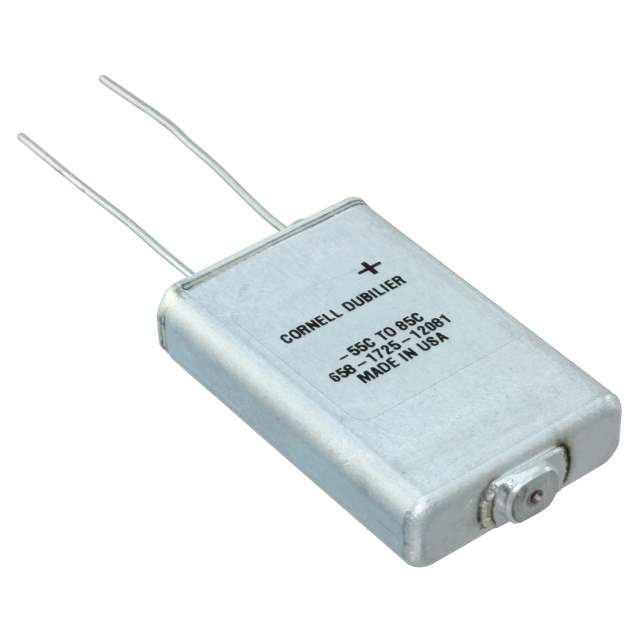

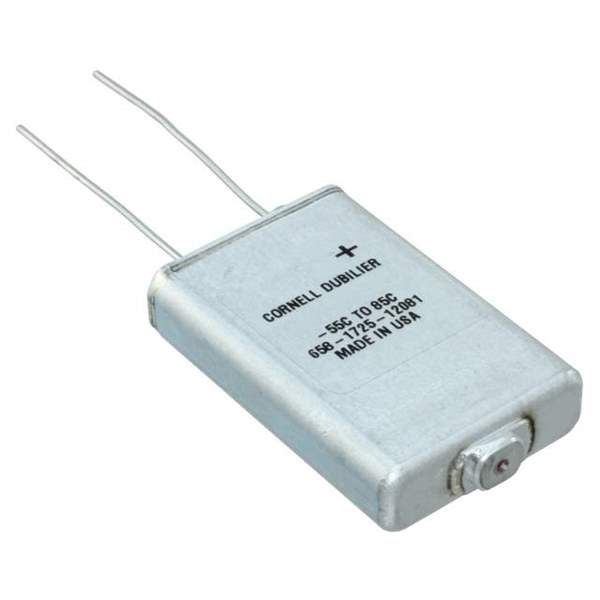

Same model may have multiple batches, images only for reference.

THAS822M016AB0C

Name: THAS822M016AB0C
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1046091
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	THAS822M016AB0C
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 8200UF 20% 16V FLATPACK / 8200 µF 16 V Aluminum Electrolytic Capacitors FlatPack 80mOhm @ 120Hz 5000 Hrs @ 105°C
Datasheet	THAS822M016AB0C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	THAS
Package	Bulk
Capacitance	8200 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	80mOhm @ 120Hz
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.2 A @ 120 Hz
Ripple Current @ High Frequency	2.42 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.807" L x 1.000" W (45.90mm x 25.40mm)
Height - Seated (Max)	0.366" (9.30mm)
Mounting Type	Through Hole
Package / Case	FlatPack
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0055
Standard Package	60
Win Source Part Number	1046091-THAS822M016AB0C
Ultra Librarian 3D Model	Ultra Librarian THAS822M016AB0C CAD Model

Description

The THAS822M016AB0C is an aluminum electrolytic capacitor designed for general purpose use.

Type: Aluminum Electrolytic Capacitor
Application: General Purpose
Capacitance: 8200µF
Voltage Rating: 16V
Tolerance: ±20%
ESR: 80mOhm @ 120Hz
Lifetime: 5000 hours @ 105°C
Polarized: Yes
Mounting: Through-Hole
Package: Flatpack
Ripple Current: 2.2A @ 120Hz and 2.42A @ 20kHz
