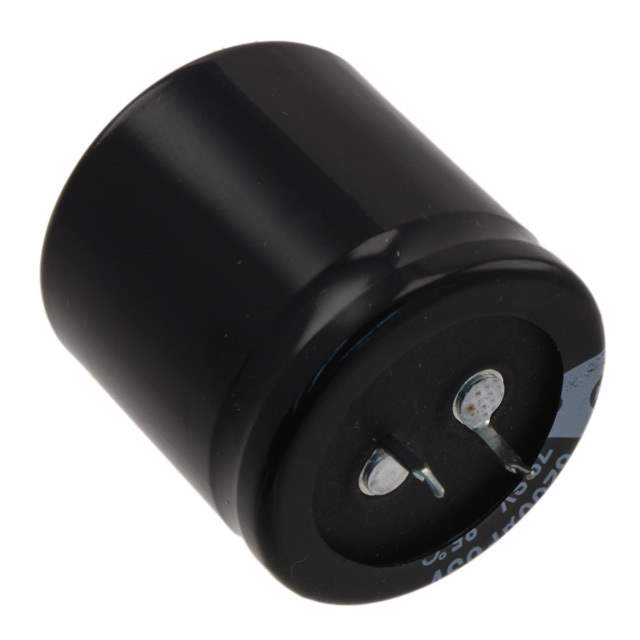

Same model may have multiple batches, images only for reference.

SLPX562M080H5P3

Name: SLPX562M080H5P3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1307546
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SLPX562M080H5P3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SLPX562M080H5P3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SLPX
Package	Bulk
Capacitance	5600 µF
Tolerance	±20%
Voltage - Rated	80 V
ESR (Equivalent Series Resistance)	59mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	4.64 A @ 120 Hz
Ripple Current @ High Frequency	5.8 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.378" (35.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	40
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1307546-SLPX562M080H5P3
Ultra Librarian 3D Model	Ultra Librarian SLPX562M080H5P3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SLPX series is a range of aluminum electrolytic capacitors designed for use in general-purpose applications.

Capacitance: 5600 µF
Tolerance: ±20%
Voltage Rating: 80 V
Standard Package: 40
Packaging: Bulk
Dimensions: 1.378" Dia (35.00mm)
Height: 1.378" (35.00mm)
ESR: 59mOhm @ 120Hz
Polarization: Polarized
Surface Mount Land Size: -
Lead Spacing: 0.394" (10.00mm)
Mounting: Through-hole
Temperature Range: -40°C ~ 85°C
Lifetime: 3000 Hrs @ 85°C
