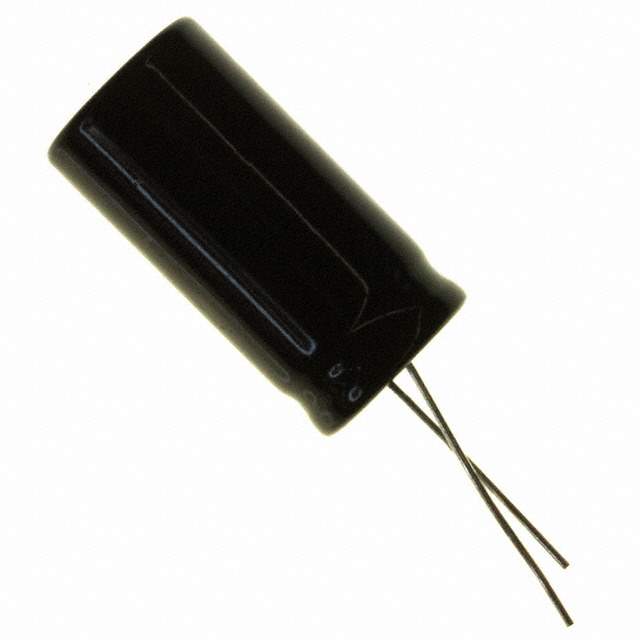

Same model may have multiple batches, images only for reference.

SEK470M400ST

Name: SEK470M400ST
Brand: Cornell Dubilier Electronics (CDE)
SKU: 766531
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SEK470M400ST
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 400V RADIAL
Datasheet	SEK470M400ST Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Cornell Dubilier Electronics (CDE)
Series	SEK
Packaging	Bulk
Capacitance	47μF
Tolerance	±20%
Voltage Rating	400V
ESR (Equivalent Series Resistance)	5.65 Ohm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature Range	-40°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	240mA @ 120Hz
Ripple Current - High Frequency	432mA @ 10kHz
Lead Spacing	0.295" (7.50mm)
Dimension	0.709" Dia (18.00mm)
Height - Seated (Maximum)	1.417" (36.00mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	766531-SEK470M400ST
Popularity	Medium
Supply and Demand Status	Balance
Family Name	SEK
Introduction Date	February 23, 1998
Country of Origin	United States of America
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian SEK470M400ST CAD Model

Description

The Cornell Dubilier Electronics (CDE) 766531-SEK470M400ST is a capacitor with a capacitance of 47μF and a tolerance of ±20%.

Operating Temperature: -40°C to 105°C
Package: Radial, Can
Voltage Rating: 400V
Lead Spacing: 0.295" (7.50mm)
ESR: 5.65 Ohm @ 120Hz
Ripple Current (Low Frequency): 240mA @ 120Hz
Ripple Current (High Frequency): 432mA @ 10kHz
Lifetime @ Temp.: 2000 Hrs @ 105°C
Polarization: Polar
