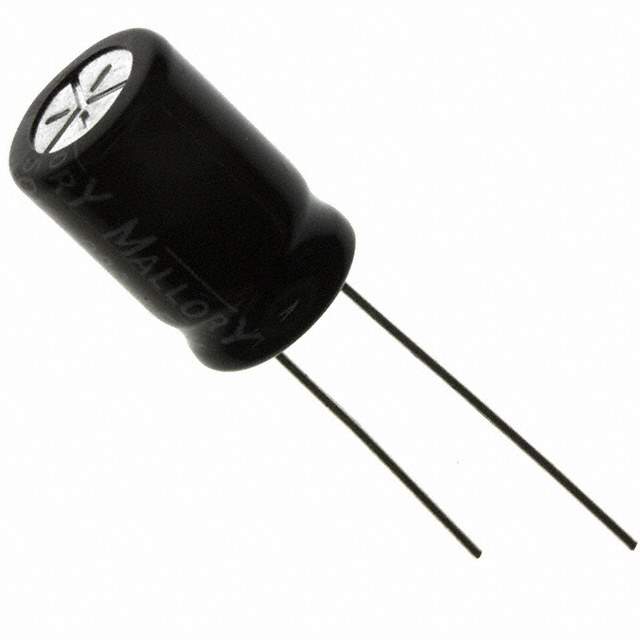

SEK470M100ST Real Image
Same model may have multiple batches, images only for reference.

SEK470M100ST

Part No SEK470M100ST
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Datasheet
SEK470M100ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SEK
Package Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) 2.82Ohm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.630" (16.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Other Names 2266-SEK470M100ST,338-2355,SEK470M100ST
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1308353-SEK470M100ST
Ultra Librarian 3D Model Ultra Librarian SEK470M100ST CAD Model

Description

The Cornell Dubilier Electronics (CDE) SEK470M100ST is a radial, can-style aluminum electrolytic capacitor with a capacitance of 47 µF and a voltage rating of 100 V.

  • Capacitance: 47 µF
  • Voltage Rating: 100 V
  • Tolerance: ±20%
  • ESR: 2.82 Ohm
  • Series: SEK series
  • Applications: General-purpose
  • Height: 0.630" (16.00mm)
  • Lead Spacing: 0.197" (5.00mm)
  • Lifetime: 2000 hours @ 105°C
  • Temperature Range: -55°C to 105°C
