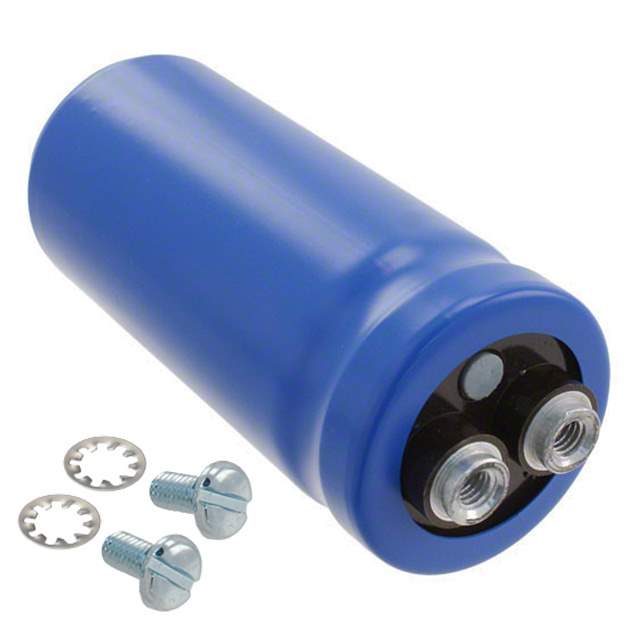

CGS951U150R3C Real Image
Same model may have multiple batches, images only for reference.

CGS951U150R3C

Part No CGS951U150R3C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 950UF 150V SCREW / Cap Aluminum Lytic 950uF 150V -10% to 75% (34.93 X 79.38mm) Screw Terminal 0.087 Ohm 3400mA 2000h 85°C
Datasheet
CGS951U150R3C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CGS
Packaging Bulk
Capacitance 950μF
Tolerance -10%, +75%
Voltage Rating DC 150V
ESR (Equivalent Series Resistance) 87 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 3.4A @ 120Hz
Ripple Current - High Frequency 4.42A @ 10kHz
Dimension 1.375" Dia (34.93mm)
Height - Seated (Maximum) 3.125" (79.38mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 775548-CGS951U150R3C
Popularity Medium
Supply and Demand Status Limited
Family Name CGS
Introduction Date August 30, 2005
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CGS951U150R3C CAD Model

Description

The Cornell Dubilier Electronics (CDE) CGS951U150R3C capacitor from Cornell Dubilier Electronics (CDE).

  • Capacitance: 950μF
  • Tolerance: -10%, +75%
  • ESR: 87 mOhm @ 120Hz
  • Ripple Current - Low Frequency: 3.4A @ 120Hz
  • Ripple Current - High Frequency: 4.42A @ 10kHz
  • Polarization: Yes
  • Voltage Rating DC: 150V
  • Operating Temperature: -40 °C ~ 85 °C
  • Package: Radial, Can - Screw Terminals
  • Dimension: 1.375" Dia (34.93mm)
  • Introduction Date: August 30, 2005
