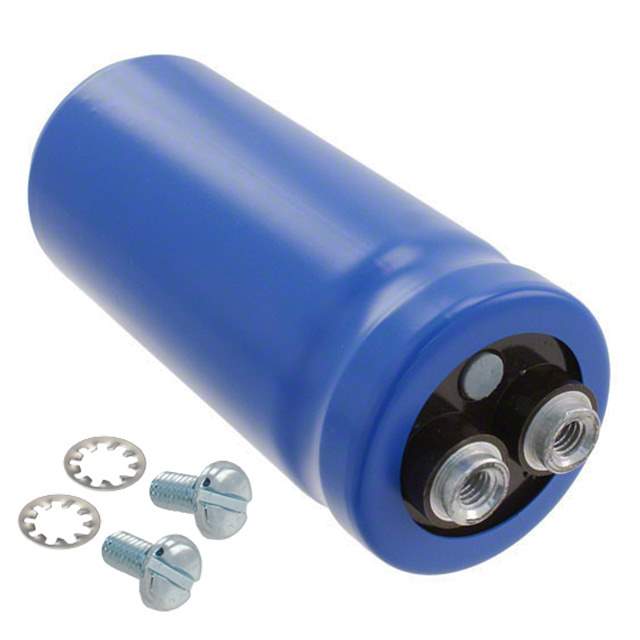

CGS152T200R3C Real Image
Same model may have multiple batches, images only for reference.

CGS152T200R3C

Part No CGS152T200R3C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 1500UF 200V SCREW / Cap Aluminum Lytic 1500uF 200V -10% to 50% (34.93 X 79.38mm) Screw Terminal 0.054 Ohm 4300mA 2000h 85°C
Datasheet
CGS152T200R3C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CGS
Packaging Bulk
Capacitance 1500μF
Tolerance -10%, +50%
Voltage Rating DC 200V
ESR (Equivalent Series Resistance) 54 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 4.3A @ 120Hz
Ripple Current - High Frequency 6.45A @ 10kHz
Dimension 1.375" Dia (34.93mm)
Height - Seated (Maximum) 3.125" (79.38mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 775487-CGS152T200R3C
Popularity Medium
Supply and Demand Status Limited
Family Name CGS
Introduction Date August 30, 2005
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CGS152T200R3C CAD Model

Description

The Cornell Dubilier Electronics (CDE) CGS152T200R3C is a polarized capacitor that is perfect for general applications.

  • Capacitance: 1500μF
  • Tolerance: -10%, +50%
  • Dielectric Material: Aluminum Electrolytic
  • Voltage Rating DC: 200V
  • Package / Case: Radial, Can-Screw Terminals
  • Mounting: Chassis Mount
  • Dimension: 1.375" Dia (34.93mm)
  • Height: 3.125" (79.38mm)
  • Operating Temperature: -40°C ~ 85°C
  • Lifetime: 2000 hours @ 85°C
  • ESR: 54 mOhm @ 120Hz
  • Ripple Current: 4.3A @ 120Hz, 6.45A @ 10kHz
