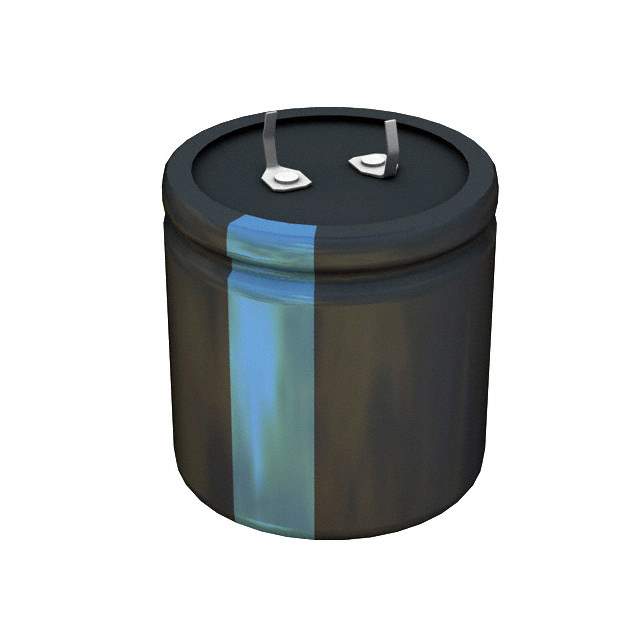

380LX393M016A032 Real Image
Same model may have multiple batches, images only for reference.

380LX393M016A032

Part No 380LX393M016A032
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 39000UF 20% 16V SNAP
Datasheet
380LX393M016A032 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series 380LX
Packaging Bulk
Capacitance 39000μF
Tolerance ±20%
Voltage Rating 16V
ESR (Equivalent Series Resistance) 22 mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 6.95A @ 120Hz
Ripple Current - High Frequency 8A @ 20kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.378" Dia (35.00mm)
Height - Seated (Maximum) 1.457" (37.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 766503-380LX393M016A032
Popularity Medium
Supply and Demand Status Limited
Family Name 380LX
Introduction Date September 12, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 380LX393M016A032 CAD Model

Description

This Cornell Dubilier Electronics (CDE) capacitor is an aluminum electrolytic capacitor from the 380LX series manufactured by Cornell Dubilier Electronics (CDE).

  • Capacitance: 39000μF
  • Tolerance: ±20%
  • Voltage Rating: 16V
  • Mounting: Through Hole
  • Package: Radial, Can - Snap-in
  • ESR: 22 mOhm @ 120Hz
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 1.378" Dia (35.00mm)
  • Ripple Current (Low Frequency): 6.95A @ 120Hz
  • Ripple Current (High Frequency): 8A @ 20kHz
  • Applications: General Purpose
