Same model may have multiple batches, images only for reference.

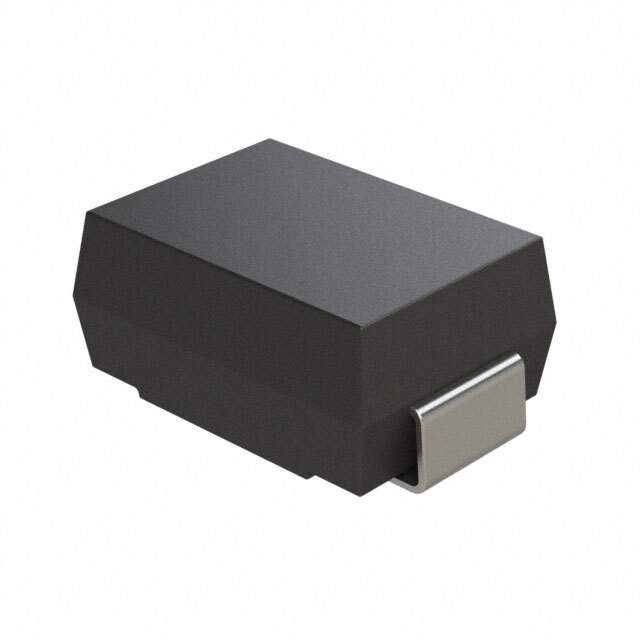

SMCP3800SC Real Image
Same model may have multiple batches, images only for reference.

SMCP3800SC

Part No SMCP3800SC
Manufacturer Eaton Bussmann
Catalog TVS - Thyristors
Description THYRISTOR 340V 400A DO214AA / 340V Off-State 400 A Ipp TVS Thyristor DO-214AA, SMB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Thyristors
Mfr Eaton - Electronics Division
Series SMCP
Package Tape & Reel (TR)
Voltage - Breakover 450V
Voltage - Off State 340V
Voltage - On State 4 V
Current - Peak Pulse (8/20µs) 400 A
Current - Peak Pulse (10/1000µs) 100 A
Current - Hold (Ih) 120 mA
Number of Elements 1
Capacitance 35pF
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Other Names 283-SMCP3800SCTR
Standard Package 3,000
Win Source Part Number 1052964-SMCP3800SC
Ultra Librarian 3D Model Ultra Librarian SMCP3800SC CAD Model

Description

The Eaton SMCP3800SC is a TVS Thyristor designed to provide reliable circuit protection.

  • Capacitance: 35pF
  • Current Rating: 100A peak pulse (10/1000µs) and 400A peak pulse (8/20µs)
  • Voltage Rating: 340V off state, 450V breakover, and 4V on state
  • Package: Tape & reel (TR)
  • Standard Package: 3,000
  • Mounting: Surface mountable
  • Category: Circuit Protection
