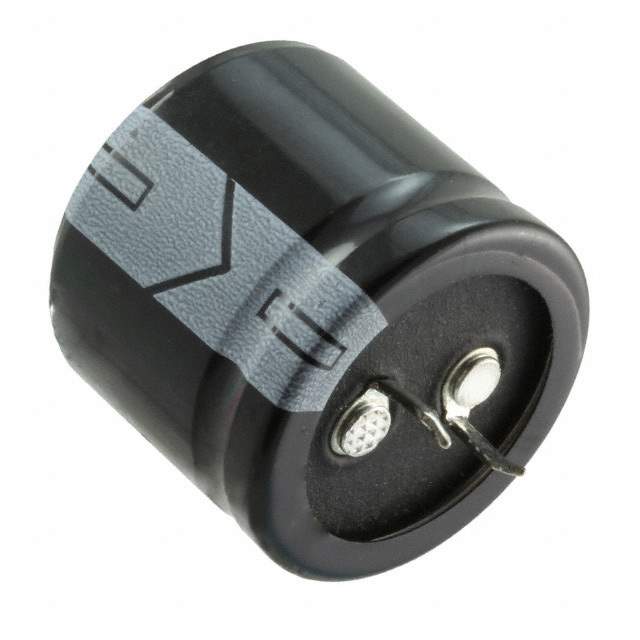

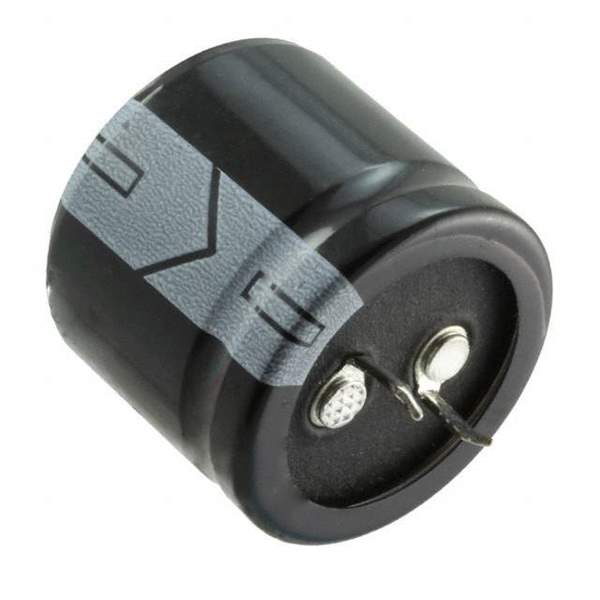

Same model may have multiple batches, images only for reference.

338LBA035M2BC

Name: 338LBA035M2BC
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1338062
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	338LBA035M2BC
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 3300UF 20% 35V SNAP / 3300 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 200.95mOhm @ 120Hz 2000 Hrs @ 85°C
Datasheet	338LBA035M2BC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier / Illinois Capacitor
Series	LBA
Package	Bulk
Capacitance	3300 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	200.95mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.2 A @ 120 Hz
Ripple Current @ High Frequency	2.75 A @ 10 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
California Prop 65	Warning Information
Win Source Part Number	1338062-338LBA035M2BC
Ultra Librarian 3D Model	Ultra Librarian 338LBA035M2BC CAD Model

Description

The Cornell Dubilier / Illinois Capacitor LBA338LBA035M2BC capacitor is a high-quality aluminum electrolytic capacitor with a capacitance of 3300 µF and a voltage rating of 35 V.

Polarization: Polarized
Tolerance: ±20%
ESR: 200.95mOhm @ 120Hz
Series: LBA
Application: General Purpose
Height: 1.063" (27.00mm)
Mounting Type: Through Hole
Package: Radial, Can - Snap-In
Lifetime: 2000 Hrs @ 85°C

The Cornell Dubilier / Illinois Capacitor LBA338LBA035M2BC capacitor is an excellent choice for a wide range of electronic applications.
