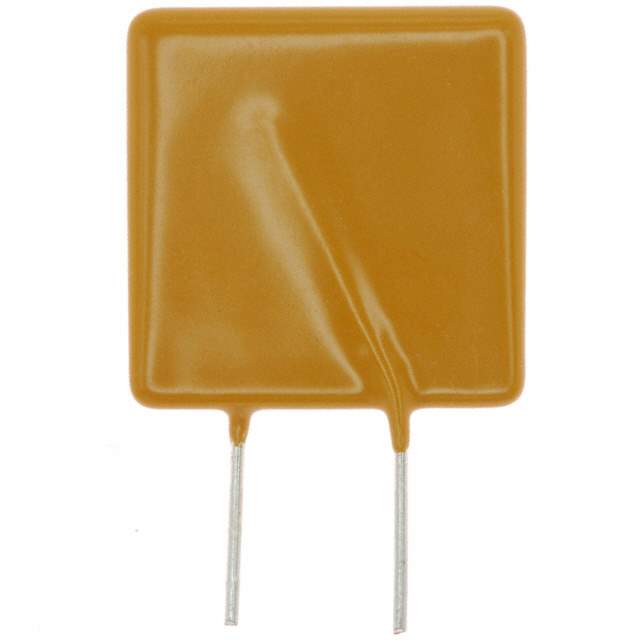

LVRL135S Real Image
Same model may have multiple batches, images only for reference.

LVRL135S

Part No LVRL135S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 120V 1.35A
Datasheet
LVRL135S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, LVRL
Packaging Bulk
Part Status Obsolete(EOL)
Type Polymeric
Voltage - Max 120V (135V Int)
Current - Max 13.5A
Current - Hold (Ih) (Maximum) 1.35A
Current - Trip (It) 2.7A
Time to Trip 20s
Resistance - Initial (Ri) (Minimum) 110 mOhm
Resistance - Post Trip (R1) (Maximum) 300 mOhm
Operating Temperature Range -20°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.640" L x 0.160" W (16.30mm x 4.10mm)
Height - Seated (Maximum) 0.850" (21.70mm)
Lead Spacing 0.200" (5.08mm)
Approvals CSA, TUV, UL
Win Source Part Number 784750-LVRL135S
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LVRL135S CAD Model

Description

The LVRL135S is a polymeric type PolySwitch from Littelfuse Inc.

  • Maximum Voltage: 120V (135V Int)
  • Maximum Current: 13.5A
  • Current Trip (It): 2.7A
  • Time to Trip: 20s
  • Current Hold (Ih): 1.35A
  • Initial Resistance (Ri): 110 mOhm
  • Mounting: Through-hole
  • Package: Radial disc
  • Temperature Range: -20°C to 85°C
  • Approvals: CSA, TUV, UL
