Same model may have multiple batches, images only for reference.

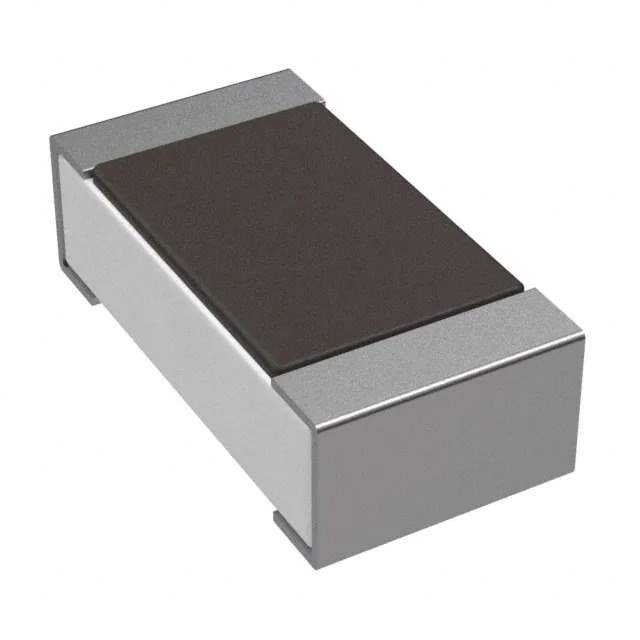

RK73Z2BTTD Real Image
Same model may have multiple batches, images only for reference.

RK73Z2BTTD

Part No RK73Z2BTTD
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RESISTOR 0 OHM JUMPER 5% 1206
Datasheet
RK73Z2BTTD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer
Series RK73Z
Package Tape & Reel
Product Status Active
Resistance 0 Ohms
Tolerance Jumper
Composition Metal Element
Features Automotive AEC-Q200, Moisture Resistant
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number RK73Z2B
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 660478-RK73Z2BTTD
Ultra Librarian 3D Model Ultra Librarian RK73Z2BTTD CAD Model

Description

The 660478-RK73Z2BTTD is a chip resistor designed for surface mount applications. It belongs to the RK73Z series and features a size of 0.126" L x 0.063" W (3.20mm x 1.60mm) with a seated height of 0.028" (0.70mm).

  • Series: RK73Z
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Seated Height: 0.028" (0.70mm)
  • Tolerance: Jumper
  • Temperature Coefficient: Not specified
  • Automotive: AEC-Q200
  • Moisture Resistant: Yes
  • Package/Case Size: 1206 (3216 Metric)
  • Packaging: Tape and Reel
  • Resistance: 0 Ohms
  • Temperature Range: -55°C to 155°C
  • Status: Active
